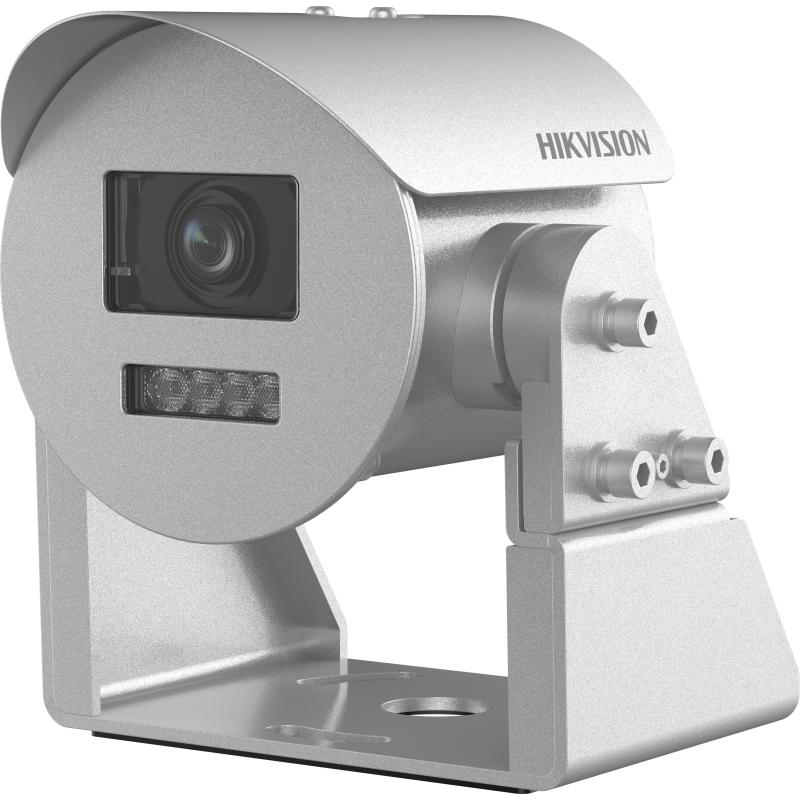

Hikvision DS-2XV6A86G0-LIZH(R)SY(316L)

Artikul: 61cf513bb683

8 MP Portal kran üçün varifokal antikorroziya şəbəkə kamerası

8 MP təsvir ölçüsü ilə yüksək keyfiyyətli görüntüləmə
Aşağı gecikməni dəstəkləyir, kamera dekodlaşdırılmasında gecikmə 150 ms-ə qədər enir
50 m-ə qədər ağ işıq məsafəsi və 80 m-ə qədər IR məsafəsi ilə geniş gecə görüntüləmə imkanı
DarkFighter texnologiyası ilə zəif işıqda əla performans
120 dB true WDR texnologiyası sayəsində güclü arxa işıqda belə aydın görüntü
Power over Ethernet (PoE) texnologiyası və 9 – 36 VDC enerji girişi ilə rahat quraşdırma
8 TOPS hesablama gücü və üçüncü tərəf tətbiqlərinin idxalı ilə Hikvision Embedded Open Platform (HEOP) dəstəyi

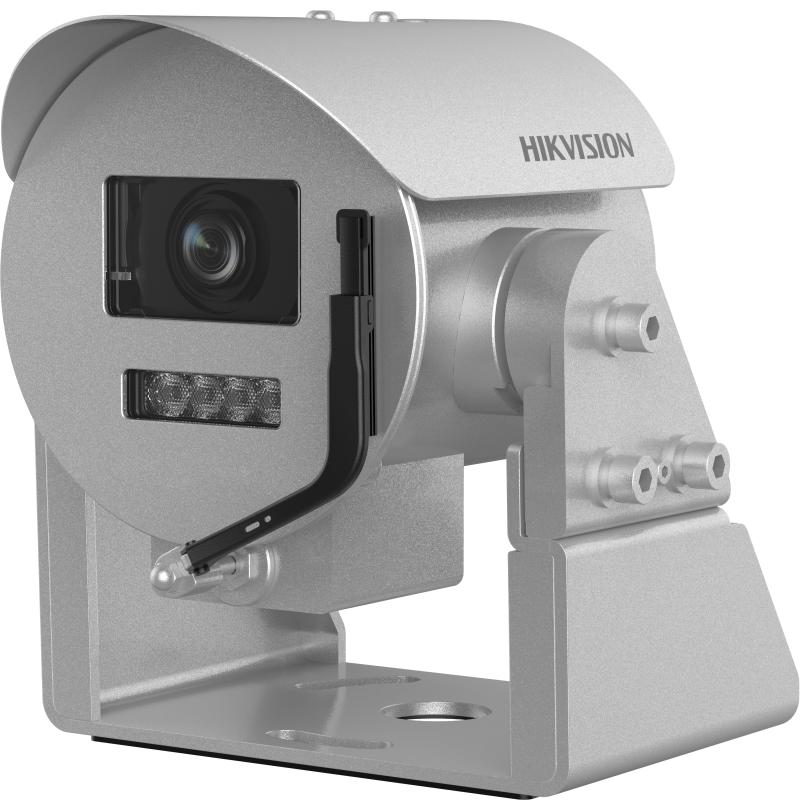

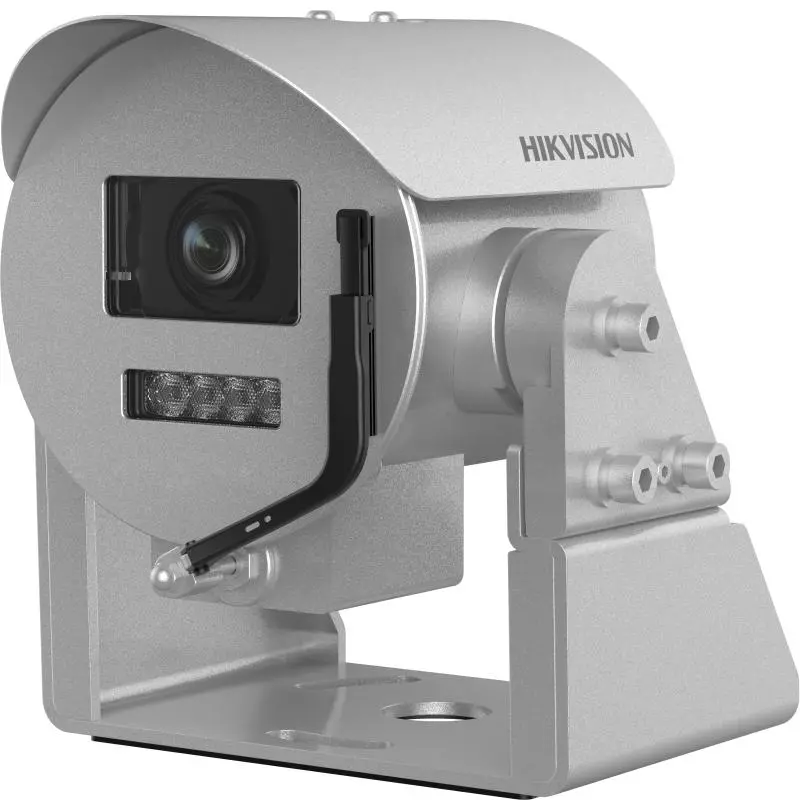

Daxili şüşəsilən (-R) ekran üzərindəki suyu və tozu təmizləyir, kameranın tozlu və ya rütubətli mühitlərdə istifadəsi zamanı aydın görüntünü təmin edir
316L paslanmayan polad korpus kameranı korroziyalı mühitlərdə istifadə üçün qoruyur, standart kameralarla müqayisədə daha yüksək etibarlılıq və uzunömürlülük təmin edir
Suya və toza davamlıdır (IP68)

Texniki pasport

Sürətli çatdırılma

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

ədəd stokda

2 saata çatdırılma

Sorğu əsasında

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON),0 Lux with light,B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: -15° to 15°,tilt: -120° to 45°

Lens
FocusAuto,Semi-auto,Manual
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 104° to 41.2°, vertical FOV 54.2° to 23.1°, diagonal FOV 126.5° to 47.3°

8 to 32 mm, horizontal FOV 41.8° to 15°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°
Iris TypeAuto-iris
Aperture2.8 to 12 mm: Max. F1.47, 8 to 32 mm: Max. F1.7

Illuminator
Supplement Light TypeIR,White Light
Supplement Light Range
2.8 to 12 mm: IR: up to 50 m, White Light: up to 30 m

8 to 32 mm: IR: up to 80 m, White Light: up to 50 m

HEOP
Open Resources
System memory: 150 MB

Smart RAM: 1800 MB

Flash: 3200 MB
Computing Power8 TOPS
Deep Learning StructureCaffe,PyTorch,TensorFlow
Programming LanguageC,C++

Video
Main Stream
50 Hz: 50 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 60 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 576, 640 × 480)
Video Compression
Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264
Video Bit Rate32 Kbps to 32 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for main stream
Target CroppingYes

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio TypeMono sound

Network
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Simultaneous Live ViewUp to 20 channels
APIONVIF, ISAPI, SDK, ISUP
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
Wide Dynamic Range (WDR)120 dB
Image StabilizationEIS
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
Image EnhancementBLC,HLC,3D DNR,Defog
Image Parameters SwitchYes
SNR≥ 52 dB
Privacy Mask8 programmable polygon privacy masks

Interface
Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface1 1000 M self-adaptive Ethernet port, 8-core M12 aviation plug
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 1 KΩ, interface type: non-equilibrium

1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventScene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)
Dynamic Area Protection
1. Supports person detection while the camera is in motion

2. Max. detectable targets: 64

3. For 2 MP/4 MP/8 MP resolutions, when target size ranges between 32 × 32/32 × 32/32 × 32 and 64 × 64/128 × 128/256 × 256, select High Mode

4. For 2 MP/4 MP/8 MP resolutions, when target size ≥64 × 64/128 × 128/256 × 256, select Low Mode

General
Power
9 to 36 VDC, 2.65 A to 0.65 A, max. 24 W,two-core terminal block,reverse polarity protection,

PoE: IEEE 802.3at, 42.5 V to 57 V, 0.56 A to 0.42 A, Class 4
Material316L and anti-corrosion coating
Dimension199.7 mm × 201.9 mm × 209.2 mm (7.9″ × 8″ × 8.2″)
Package Dimension340 mm × 298 mm × 290 mm (13.4″ × 11.7″ × 11.4″)
Approx. 3000 g (6.61 lb.)
With Package WeightApprox. 4000 g (8.82 lb.)
Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Wiper-R: Yes
General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
SafetyCB: IEC 62368-1: 2014
ProtectionIP68: IEC 60529:1989+AMD1:1999+AMD2:2013
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018),C5
Transport CertificationIATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Dangerous Goods Code, Railway Dangerous Goods List
