Hikvision DS-2CD6D54G1-IZS(B)

Artikul: HC-DS-2CD6D54G1-IZS(B)

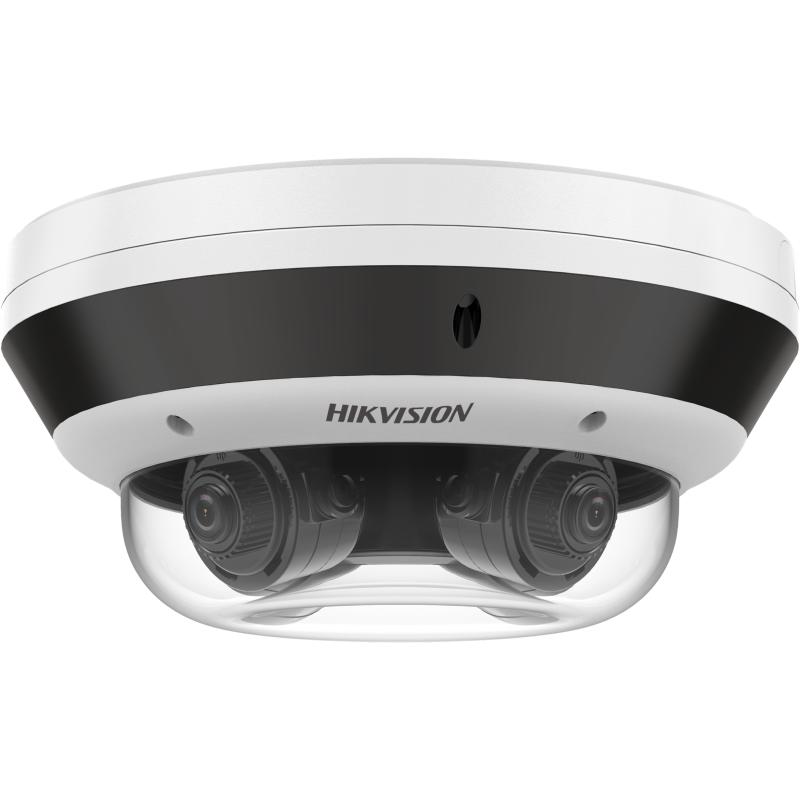

Hikvision DS-2CD6D54G1-IZS(B) — 4-Directional Multisensor IP kamera

Image Sensor: 1/2.7″ Progressive Scan CMOS
Max. Resolution: 2560 × 1920
Min. Illumination: Color: 0.0125 Lux @ (F1.9, AGC ON) B/W: 0.0025 Lux @ (F1.9, AGC ON), 0 Lux with IR
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350°
Lens Type: Varifocal lens, motorized lens, 2.8 to 8 mm
Focal Length & FOV: 2.8 to 8 mm, horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor1/2.7″ Progressive Scan CMOS
Max. Resolution2560 × 1920
Min. IlluminationColor: 0.0125 Lux @ (F1.9, AGC ON)
B/W: 0.0025 Lux @ (F1.9, AGC ON), 0 Lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350°

Lens
Lens TypeVarifocal lens, motorized lens, 2.8 to 8 mm
Focal Length & FOV2.8 to 8 mm, horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°
Lens MountØ14
FocusSemi-auto,Manual
ApertureF1.9

Video
Main Stream50 Hz: 15 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 15 fps (704 × 576, 640 × 480)
60 Hz: 15 fps (704 × 480, 640 × 480)
Third Stream50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 encoding
Region of Interest (ROI)4 fixed regions for each stream
Target CroppingYes

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/HostUp to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserIE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11

Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image StabilizationEIS
Image EnhancementBLC, HLC, 3D DNR, Defog
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Interface
Ethernet Interface1 RJ45 10 M/100 M/1000 M Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB
Audio1 input (line in), 1 output (line out), 3.5 mm three-contact
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Scene change detection, audio exception detection, defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

General
Power12 VDC± 20%, 1.8 A, 22 W, reverse polarity protection, three-core terminal block
24 VAC ± 20%, 1.4 A, 22 W
PoE: IEEE 802.3at, Class 4, 42.5 to 57 VDC, 0.44 to 0.33 A, 19 W
MaterialBubble & IR cover: plastic, camera: metal
DimensionØ250 × 114.9 mm (Ø9.8″ × 4.5″)
Package Dimension336 mm × 261 mm × 293 mm (13.2″ × 10.3″ × 11.5″)
Approx. 2.2 kg (4.9 lb.)
With Package WeightApprox. 3.9 kg (8.6 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-banding, heartbeat, mirror, privacy mask

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
SafetyUL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU
ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
