Hikvision DS-2CD6D44G3-IZHS

Artikul: HC-DS-2CD6D44G3-IZHS

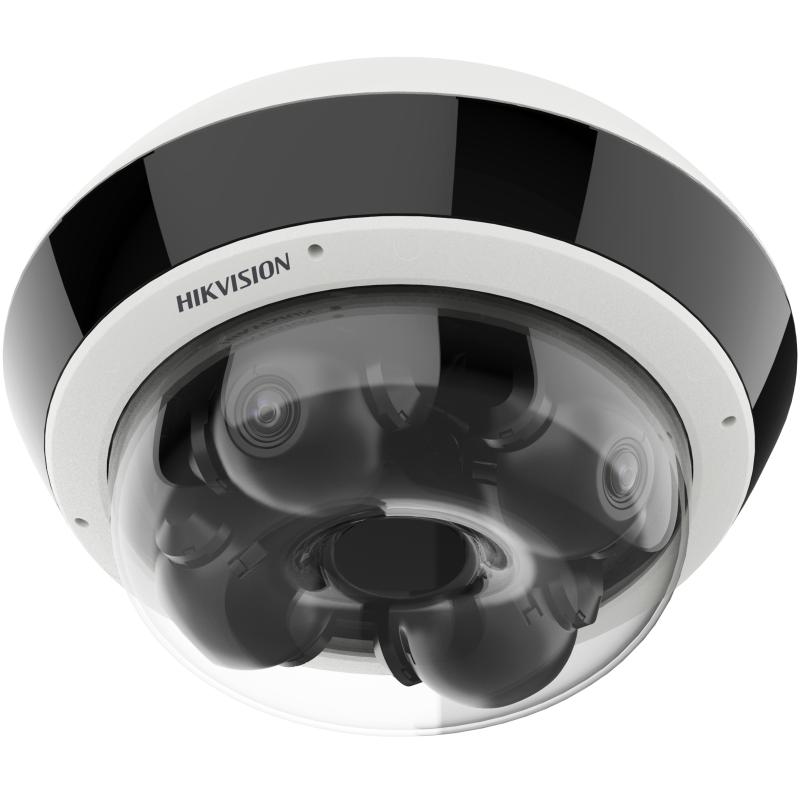

Hikvision DS-2CD6D44G3-IZHS — 4-Directional Multisensor IP kamera

Image Sensor: 4 sensors, 1/2.7″ Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Remote adjustment (Max. 400 cycles) Pan: 0° to 350°,tilt: 17° to 105°,rotate: -90° to 90°
Lens Type: Varifocal lens, motorized lens, 3 to 14 mm
Focal Length & FOV: 3 to 14 mm, horizontal FOV 113.6° to 31°, vertical FOV 59.6° to 17.5°, diagonal FOV 137.8° to 35.6°

Hikcenter-də Hikvision DS-2CD6D44G3-IZHS

Qiyməti və mövcudluğu telefonla və ya WhatsApp-da dəqiqləşdirin.

Rəsmi Hikvision mərkəzi — yalnız orijinal avadanlıq.
Məhsuldan asılı olaraq 1–5 il zəmanət; alıcı hüquqları Azərbaycan qanunvericiliyinə uyğun.
Bakıda pulsuz çatdırılma, rayonlara kuryerlə.
Seçim, quraşdırma və sazlama — quraşdırma xidməti haqqında, Bakıda baxış pulsuzdur.

+994 77 480 33 39 WhatsApp

Faydalı bələdçilər

BələdçiEv üçün kamera necə seçilir: sadə bələdçiWi-Fi yoxsa kabelli, neçə meqapiksel, gecə görmə, arxiv — evə, mənzilə və həyətə kamera seçərkən nəyə baxmaq lazımdır.Oxu →

BələdçiNVR yoxsa DVR: hansı qeydiyyatçını seçmək lazımdırNVR və DVR arasındakı fərq, müqayisə cədvəli, kanal sayı və sərt disk seçimi.Oxu →

Sürətli çatdırılma

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor4 sensors, 1/2.7″ Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentRemote adjustment (Max. 400 cycles)
Pan: 0° to 350°,tilt: 17° to 105°,rotate: -90° to 90°

Lens
Lens TypeVarifocal lens, motorized lens, 3 to 14 mm
Focal Length & FOV3 to 14 mm, horizontal FOV 113.6° to 31°, vertical FOV 59.6° to 17.5°, diagonal FOV 137.8° to 35.6°
Lens MountIntegrated
FocusAuto,Semi-auto,Manual
ApertureF1.79

O2DCPVS
OODPCVSWide: Overview: 75.0 m, Outline: 37.5 m, Discern:18.7 m, Perceive: 12.0 m, Characterize: 6.1 m, Validate: 3.0 m, Scrutinize: 1.0 m .
Tele: Overview: 247.3 m, Outline: 123.7 m, Discern: 61.8 m, Perceive: 39.6 m, Characterize: 19.8 m, Validate: 9.9 m, Scrutinize: 3.3 m .
The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
IR Wavelength850 nm

Video
Main Streamchannel1：
50 Hz:25 fps(2688 × 1520,2560 × 1440,1920 × 1080,1280 × 720)
60 Hz:30 fps(2688 × 1520,2560 × 1440,1920 × 1080,1280 × 720)
channel2：
50 Hz:25 fps(2688 × 1520,2560 × 1440,1920 × 1080,1280 × 720)
60 Hz:30 fps(2688 × 1520,2560 × 1440,1920 × 1080,1280 × 720)
channel3：
50 Hz:25 fps(2688 × 1520,2560 × 1440,1920 × 1080,1280 × 720)
60 Hz:30 fps(2688 × 1520,2560 × 1440,1920 × 1080,1280 × 720)
channel4：
50 Hz:25 fps(2688 × 1520,2560 × 1440,1920 × 1080,1280 × 720)
60 Hz:30 fps(2688 × 1520,2560 × 1440,1920 × 1080,1280 × 720)
Sub-Streamchannel1：
50 Hz:25 fps(704 × 576,640 × 480)
60 Hz:30 fps(704 × 480,640 × 480)
channel2：
50 Hz:25 fps(704 × 576,640 × 480)
60 Hz:30 fps(704 × 480,640 × 480)
channel3：
50 Hz:25 fps(704 × 576,640 × 480)
60 Hz:30 fps(704 × 480,640 × 480)
channel4：
50 Hz:25 fps(704 × 576,640 × 480)
60 Hz:30 fps(704 × 480,640 × 480)
Third Streamchannel1：
50 Hz:25 fps(1920 × 1080,1280 × 720,704 × 576,640 × 480)
60 Hz:30 fps(1920 × 1080,1280 × 720,704 × 480,640 × 480)
channel2：
50 Hz:25 fps(1920 × 1080,1280 × 720,704 × 576,640 × 480)
60 Hz:30 fps(1920 × 1080,1280 × 720,704 × 480,640 × 480)
channel3：
50 Hz:25 fps(1920 × 1080,1280 × 720,704 × 576,640 × 480)
60 Hz:30 fps(1920 × 1080,1280 × 720,704 × 480,640 × 480)
channel4：
50 Hz:25 fps(1920 × 1080,1280 × 720,704 × 576,640 × 480)
60 Hz:30 fps(1920 × 1080,1280 × 720,704 × 480,640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)4 fixed regions for each stream
Target CroppingYes

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate16 Kbps(G.722.1)/64 Kbps (G.711ulaw/G.711alaw)/16~64 Kbps(AAC-LC)/8~320 Kbps(MP3)/16 Kbps(G.726)/32~192 Kbps(MP2L2)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsIPv6,UDP,RTP,SSL/TLS,TCP/IP,ICMP,DDNS,DHCP,RTCP,DNS,IPv4,QoS,RTSP,HTTP,IGMP,802.1X,UPnP,SMTP,WebSockets,PPPoE,HTTPS,SFTP,NTP,SNMP,WebSocket,FTP
Simultaneous Live ViewUp to 20 channels
APIISAPI,EZVIZ,Open Network Video Interface,ISUP,OTAP,SDK
User/HostUp to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS)
ClientiVMS-4200,Hik-Connect
Web BrowserPlug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settingssharpness,contrast,brightness,saturation,white balance,gain,adjustable by client software or web browser
Day/Night SwitchSchedule,Night,Auto,Day
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image StabilizationEIS
Image EnhancementBLC,HLC,3D DNR,Distortion Correction
Privacy Mask8 programmable polygon privacy masks
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes

Event
Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Smart Eventscene change detection,defocus detection,audio exception detection
Linkageaudible warning,notify surveillance center,trigger alarm output,Upload to FTP/NAS/memory card,trigger recording,send email

Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Multi-target-type Detection
Supports simultaneous detection and capture of human body, face, vehicle,andnon-motor vehicle,
Supports license plate recognition,
Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle
Face CaptureDetects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second

General
Power3-core terminal block,12 VDC ± 20%, 3.3 A, max. 40 W,
PoE: Hi-PoE: 42.5 VDC to 57 VDC, 1.05 A to 0.78 A, max. 45W
DimensionØ290 mm × 147.85 mm (Ø11.42″ × 5.8″)
Package Dimension453 mm × 393 mm × 385 mm (17.8″ × 15.47″ × 15.16″)
Approx. 4.7 kg (10.36 lb.)
With Package WeightApprox. 8.0 kg (17.63 lb.)
Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,
RCM: AS/NZS CISPR 32: 2015
SafetyCB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
