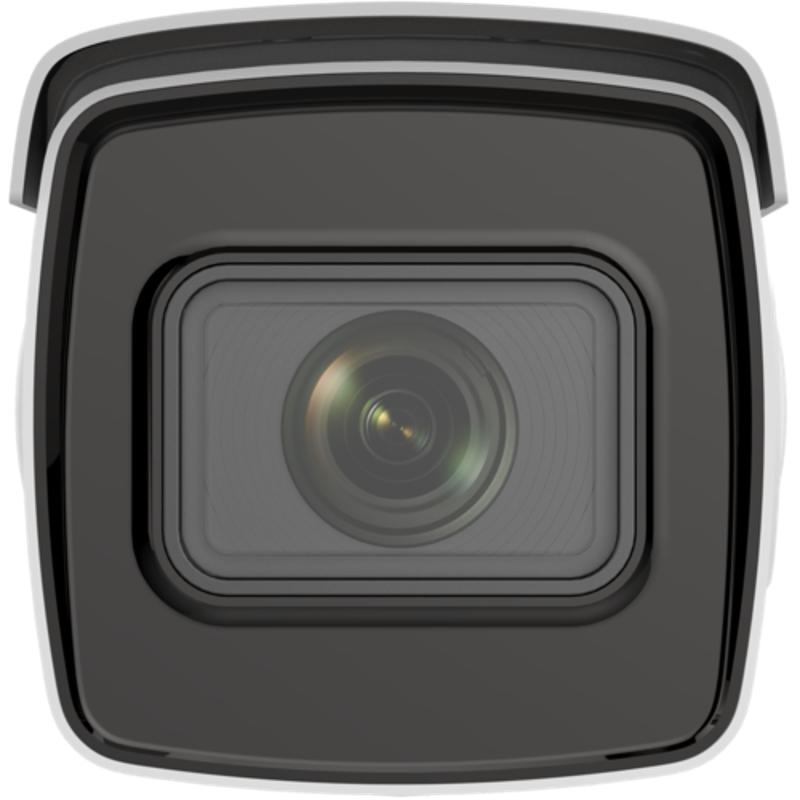

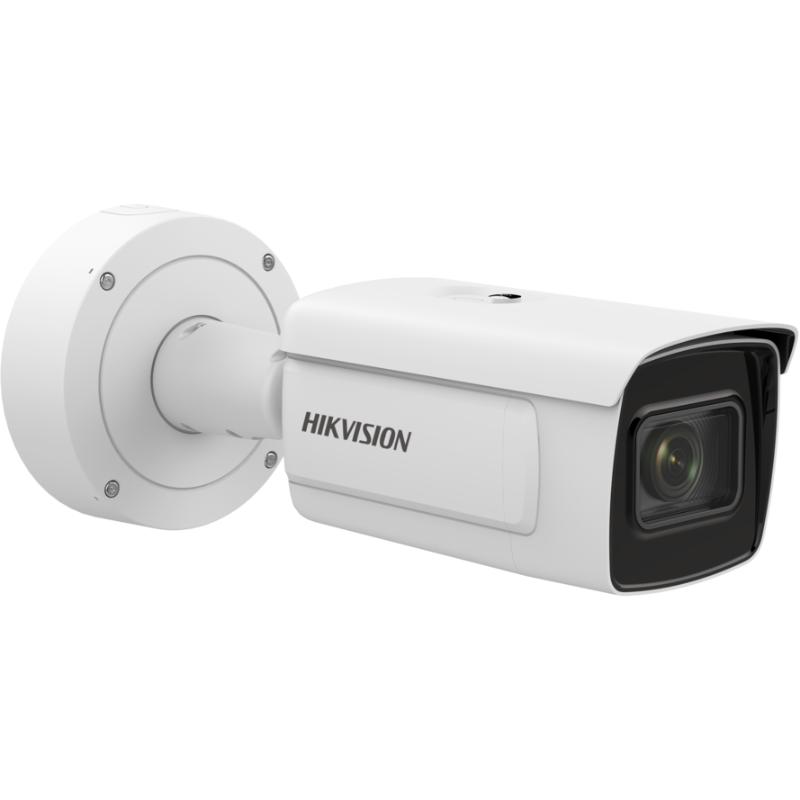

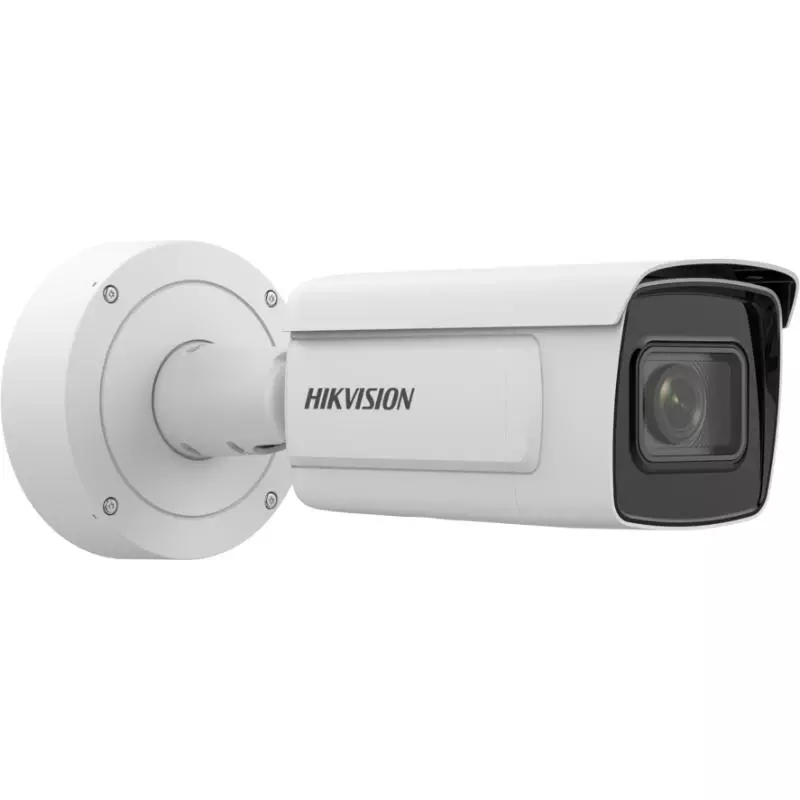

Hikvision iDS-2CD7AC5G0-IZHS(Y)(R)

1/1.7″ Progressive Scan CMOS

4000 × 3000

Color: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON)

1 s to 1/100,000 s

IR cut filter

Auto, semi-auto, manual

2.8 to 12 mm, horizontal FOV: 96.2° to 36.4°, vertical FOV: 69.3° to 27.2°, diagonal FOV: 129.4° to 45.5°
8 to 32 mm, horizontal FOV: 40.2° to 14.4°, vertical FOV: 29.6° to 10.8°, diagonal FOV: 51.47° to 17.8°

2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73

Integrated

2.8 to 12 mm: 50 m
8 to 32 mm: 100 m

850 nm

Yes

50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720)
60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
50 Hz: 20 fps (4000 × 3000)
60 Hz: 20 fps (4000 × 3000)

50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG

32 Kbps to 16 Mbps

Baseline Profile/Main Profile/High Profile

Main Profile

CBR/VBR

H.264 and H.265 encoding

4 fixed regions for each stream

Yes

Yes

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

G.711/G.722.1/G.726/MP2L2/PCM/MP3

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)/8 to 320 Kbps (MP3)

Mono sound

Up to 20 channels

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Yes

Up to 32 users. 3 user levels: administrator, operator and user

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

iVMS-4200, Hik-Connect, Hik-Central

Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+

Digital WDR

Day, Night, Auto, Schedule, Alarm Trigger

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction

Yes

Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

≥52 dB

2 input, 2 outputs (max. 24 VDC, 1 A)

-IZHY:
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

1 Vp-p Composite Output (75Ω/CVBS) (For debugging only)

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Yes

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

With -Y: 12 VDC, max. 100 mA (supported by all power supply types)

Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output, Email

Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Scene change detection, audio exception detection, defocus detection

Detects up to 30 faces simultaneously;
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;
Up to 3 face libraries with up to 30000 faces each are configurable;
Recognizes face identity via face modeling, grading and comparing to those in face library;
Supports face library encryption.

Supports simultaneous detection of human body and face
Gets 8 face features and 13 human body features

Yes

Detects queuing-up people number, and waiting time of each person
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.

12 VDC ± 20%, 1.33 A, max. 16.0 W, three-core terminal block, reverse polarity protection,
PoE: IEEE 802.3at, 42.5 V to 57 V, 0.43 A to 0.31 A，max. 18.0 W

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Yes

Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Aluminum alloy body

Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)
With -Y: Ø140 mm × 351 mm (Ø5.5″ × 13.8″)

405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″)

Approx. 1920 g (4.2 lb.)

Approx. 3060 g (6.7 lb.)

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

With -R: EN50121-4

With -Y: NEMA 4X (NEMA 250-2018)

With -Y: PVC FREE
