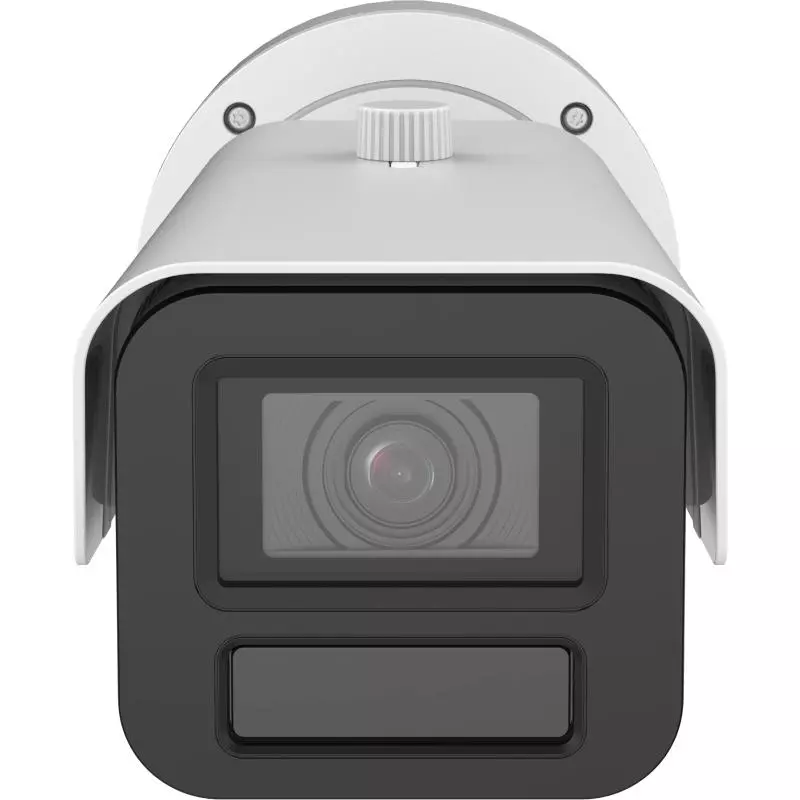

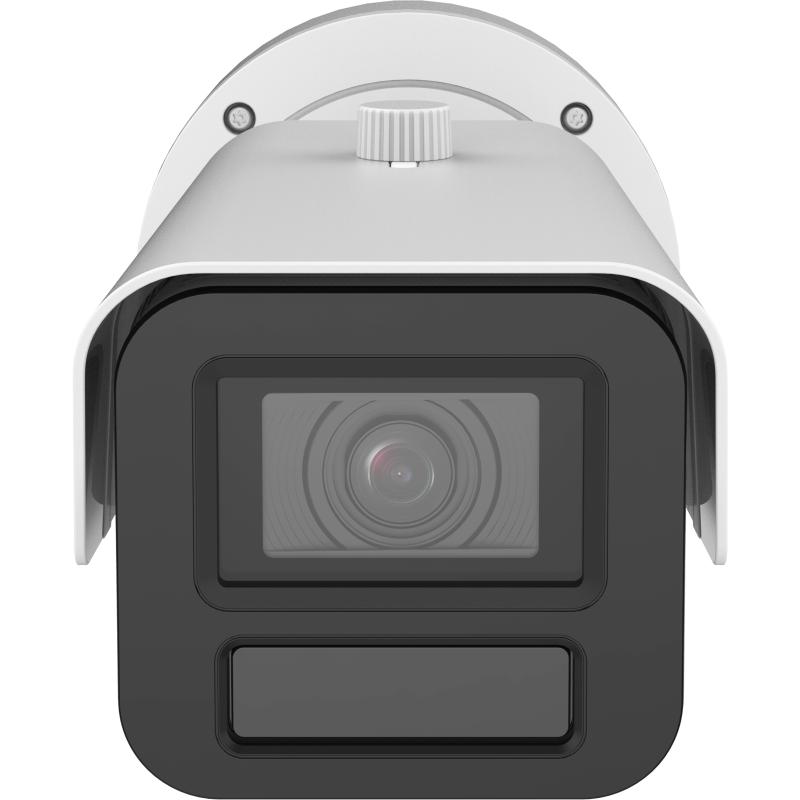

Hikvision iDS-2CD7A87G2/P-XZHS(Y)

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter,;Blue glass module (less ghost phenomenon)

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 89.7° to 43.5°, vertical FOV 48.3° to 24.3°, diagonal FOV 106.3° to 50°

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focus

Auto,Semi-auto,Manual

Iris Type

P-iris

Aperture

2.8 to 12 mm: F1.0 to F1.2

DORI

2.8 to 12 mm:;D (Detect): 204.0 m, O (Observe): 81.0 m, R (Recognize): 40.8 m, I (Identify): 20.4 m;The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.

Supplement Light Type

IR,White Light

Supplement Light Range

2.8 to 12 mm: Monitoring: 60 m;

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

Monitoring mode:;50 Hz: up to 50 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080);60 Hz: up to 60 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080);*High frame rate is supported under monitoring mode only.;smart mode:;50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480);60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Fifth Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264,;Fourth stream: H.265/H.264/MJPEG,;Fifth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for each stream

Target Cropping

Yes

e-PTZ

Support Patrol and Auto Tracking settings

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets

Simultaneous Live View

Up to 20 channels

API

ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger

Wide Dynamic Range (WDR)

140 dB

Image Enhancement

BLC,HLC,3D DNR,Distortion Correction,Defog

Privacy Mask

8 programmable polygon privacy masks

SNR

≥ 52 dB

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Image Stabilization

EIS

Video Output

1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB

Alarm

2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)

Audio

1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,;1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

RS-485

-Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Power Output

-Y: 12 VDC, max. 100 mA

Wiegand

-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection

Smart Event

scene change detection,audio exception detection,defocus detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle);Support combined event alarm triggering

Metadata

Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic

Road Traffic and Vehicle Detection

Smart Function:;Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario);Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.;Support vehicle and non-vehicle counting;Blocklist and allowlist: up to 10,000 records;LPR Countries/Regions:;4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions;Accuracy (Under recommended installation and lighting conditions):;License plate recognition rate ≥98%;Capture rate ≥99%;Driving direction accuracy rate ≥98%;Vehicle Capture Speed:;Front installation in checkpoint scenario: up to 120 km/h;Side installation: up to 60 km/h;Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

Power

With -Y:;three-core terminal block,;12 VDC ± 20%, 1.9A, max. 22.7W,;24 VAC ± 20%, 1.67A, max. 21.9 W,;PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.6 A to 0.45 A, max. 25.2 W;Without -Y:;three-core terminal block,;12 VDC ± 20%, 1.8A, max. 21.5W,;24 VAC ± 20%, 1.66A, max. 20.7 W,;PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.6 A to 0.45 A, max. 24 W

Material

Aluminum alloy body

Dimension

Ø140 mm × 378.4 mm (Ø5.5″ × 14.9″)

Package Dimension

425 mm × 190 mm × 180 mm (16.7″ × 7.5″ × 7.1″)

Weight

Approx. 2380 g (5.25 lb.)

With Package Weight

Approx. 3488 g (7.69 lb.)

Storage Conditions

-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log

Heater

Yes

Demist

Yes

Device Management

Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7,;KC: KN32: 2015, KN35: 2015

Safety

CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017,;BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,;LOA: IEC/EN 60950-1

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Anti-Corrosion Protection

-Y: NEMA 4X (NEMA 250-2018)

Automotive and Railway

EN50121-4

Other

PVC FREE
