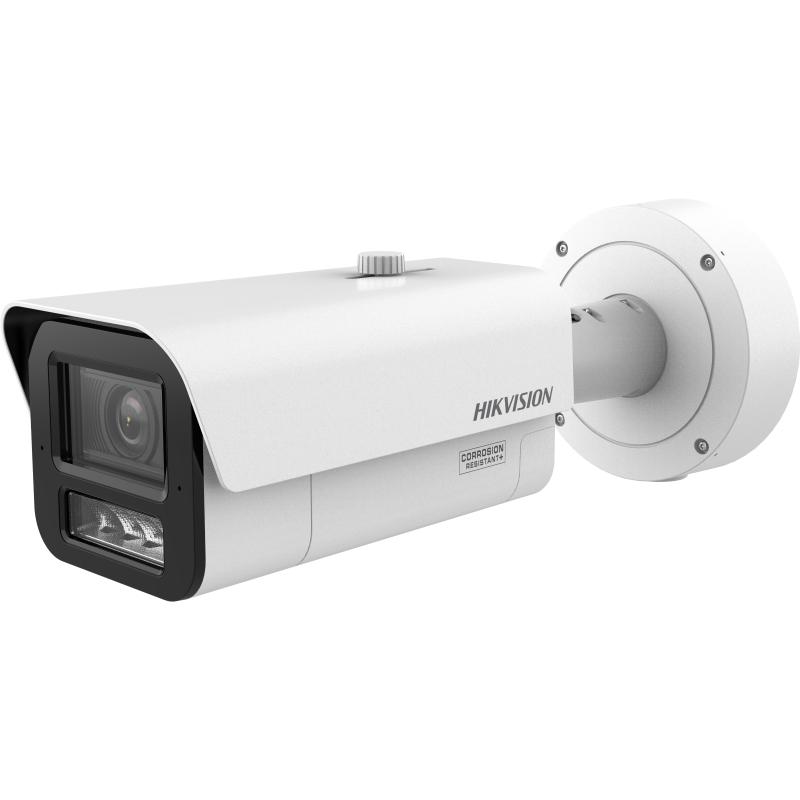

Qiymət sorğusu- Camera
- Image Sensor1/1.2″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter,
Blue glass module (less ghost phenomenon)
- Lens
- Focal Length & FOV10 to 50 mm, horizontal FOV 91.3° to 44.2°, vertical FOV 49.3° to 24.8°, diagonal FOV 108.6° to 50.9°
- Lens TypeVarifocal lens, motorized lens, 10 to 50 mm
- FocusAuto,Semi-auto,Manual
- Iris TypeP-iris
- Aperture10 to 50 mm: F1.65 to F1.67
- O2DCPVS
- OODPCVSWide: Overview: 208.3 m, Outline: 104.2 m, Discern: 52.1 m, Perceive: 33.3 m, Characterize: 16.7 m, Validate: 8.3 m, Scrutinize: 2.8 m .
Tele: Overview: 571.4 m, Outline: 285.7 m, Discern: 142.9 m, Perceive: 91.4 m, Characterize: 45.7 m, Validate: 22.9 m, Scrutinize: 7.6 m .
The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light Range10 to 50 mm: Monitoring: 100 m;
- Smart Supplement LightYes
- IR Wavelength850 nm
- HEOP
- Open ResourcesMemory: 150 MB,
Smart RAM: 2200 MB,
eMMC: 1288 MB - Computing Power2.5 TOPS
- Open CapabilityHEOP 2.0 OpendevSDK, Basic service, basic media capability, deep learning reasoning acceleration capability
- Deep Learning StructureCaffe,PyTorch,TensorFlow
- Programming LanguageC,C++
- AI Open Platform
- Model Specification1. Up to 3 models. Model type: detection model, classification model, mixed model (detection model and classification model).
2. Supports video analysis (detection, classification, mixed, OCR, segmentation, comparison) and scheduled capture analysis (classification).
(1) Detection: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule, area overlap ratio counting, area overlap ratio exception detection.
(2) Classification: Region exception status detection, full analysis rule.
(3) Mixed: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule; area overlap ratio counting, area overlap ratio exception detection.
(4) Picture Comparison: Area status change detection.
(5) OCR: OCR-triggered capture.
(6) OVD: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule, area overlap ratio counting, area overlap ratio exception detection.
3. Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
4. Built-in models for PPE detection (hard hat and reflective clothing).
- Video
- Main StreamMonitoring mode:
50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080)
60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080)
*High frame rate is supported under monitoring mode only.
smart mode:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) - Sub-Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480) - Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) - Fourth Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480) - Fifth Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480) - Video Compression Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG - Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed regions for each stream
- Target CroppingYes
- e-PTZSupport Patrol and Auto Tracking settings
- Guanlan AI EncodingYes
- Audio
- Audio TypeMono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, MQTT/MQTTS, RTMP , Support X.509 authentication, Support802.1xEAP-GTC and MSCHAP V2; 802.1xEAP 1.2 supports a maximum 32-bit key.
- Simultaneous Live ViewUp to 20 channels
- APIISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
- User/HostUp to 32 users
3 user levels: administrator, operator, and user - SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
- Smooth StreamingYes
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Cloud Storage,
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - ClientiVMS-4200,Hik-Connect,Hik-Central
- Web BrowserPlug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
- Wide Dynamic Range (WDR)150 dB
- Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
- Privacy Mask8 programmable polygon privacy masks
- SNR≥ 52 dB
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Image StabilizationEIS
- Interface
- Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
- Built-in Microphone 2 built-in microphones
- Audio1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound - Built-in Speaker 1 built-in speaker,Max. power consumption: 2.0W
- RS-485-Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Power Output-Y: 12 VDC, max. 100 mA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),glass break detection,scream detection,gunshot and explosion sound detection,crying sound detection
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,HTTP custom alarm
- Deep Learning Function
- Multi-target-type Detection
Supports dynamic mosaic mask,
Supports ShotN technology,
Supports simultaneous detection and capture of human body, face, and vehicle,
Gets 7 face features,
Gets 13 vehicle features,
Gets 2 human body features,
Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,
Supports license plate recognition - Face CaptureDetects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,
Uploads face with background and closed-up face pictures,
Supports best shot and quick shot for capture mode,
Supports dynamic mosaic mask,
Gets 7 face features - Face ComparisonUp to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,
Supports face library encryption - Activity AnalysisSupport the detection of person smoking or making phone calls and trigger alarm. The detection attributes include head and shoulders, hands, faces, making phone calls, and smoking.
- People CountingSupports Multi-Dimension People Counting,
Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),
Supports real-time uploading and uploading by statistic cycle,
Supports generating daily, weekly, monthly or annually reports,
Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,
Supports face feature deduplication,
Supports people flow data replenishment,
Reverse counting alarm will be triggered when the target leaves the detection area in the direction opposite to the set direction,Supports Face Mode and Clothing Mode - Queue ManagementSupports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Supports combined rule settings for Regional People Counting and Waiting Time Detection.
Mode 1: Alarm can be independently triggered if any one of the event alarm conditions is met.
Mode 2: Alarm can be triggered only when the number of people meets the alarm threshold and at least one person’s waiting time meets the threshold. - Heat MapA graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart. - Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering - MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
- Regional People CountingSupports up to 8 detection regions, and independent arming schedule and linkage method
Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
Supports searching real-time number of people
People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B) - On/Off Duty DetectionSupports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: absence detection, on/off duty detection
Supports parameter settings: person on duty, absence duration - AcuSeekSupport searching for humans, license plates, vehicles, non-motorized vehicles, and animals and uploading the feature information. This function requires use with AcuSeek NVR/Servers.
- PPE DetectionDetects hard hat and reflective clothing, triggering alarm when not worn.
Detects people not wearing hard hat. Supported hat colors: red, orange, yellow, blue, white, and others. - GeneralSupports scheduled-switch of smart applications.
Supports enabling 2 smart applications at the same time.
- General
- Powerthree-core terminal block,
12 VDC ± 20%, 1.8A, max. 21.6 W,
24 VAC ± 20%, 1.47A, max. 20.8 W,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.54 A to 0.4 A, max. 23.1 W - MaterialAluminum alloy body
- Dimension120.8 mm × 102.9 mm × 367.4 mm (4.75″ × 4.05″ × 14.77″)
- Package Dimension425 mm × 190 mm × 180 mm (16.7″ × 7.5″ × 7.1″)
- Approx. 2300 g (5.07 lb.)
- With Package WeightApprox. 3445 g (7.64 lb.)
- Storage Conditions-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat,anti-banding,one-key reset,mirror,password protection,flash log
- HeaterYes
- DemistYes
- Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces. Supports adding network microphone and speaker.
- Integrated Connector Panel-Y: No
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015 - Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017 - EnvironmentCE-RoHS: 2011/65/EU
- ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
- Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
- Automotive and RailwayEN50121-4
- OtherPVC FREE
- Cyber SecurityIEC62443-4-1 ML2
EUCC
CC: EAL3
