Hikvision iDS-2CD7026G0(-AP)

Artikul: 9bb170d5a0ad

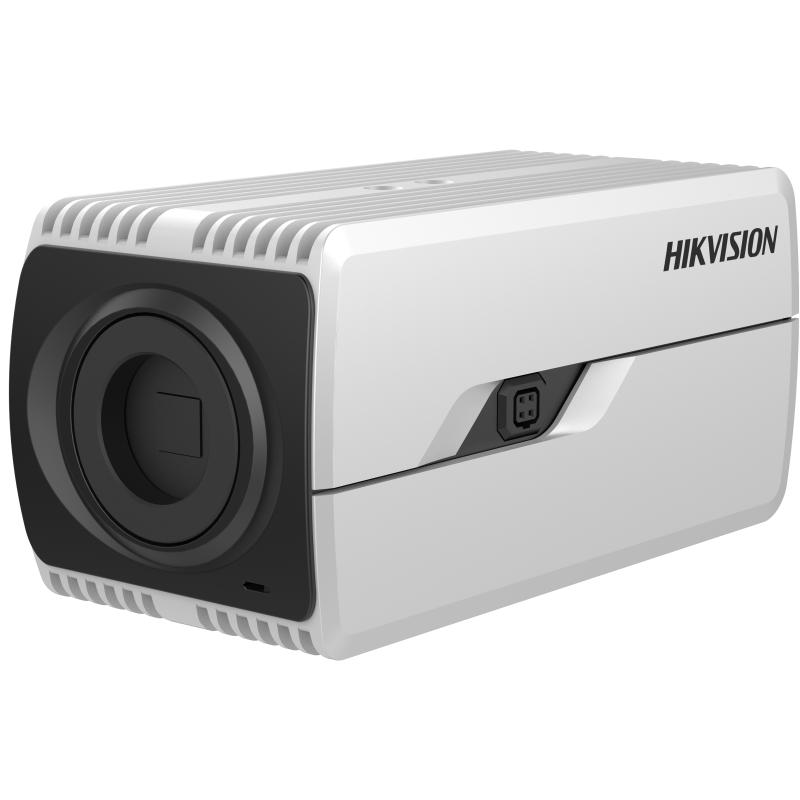

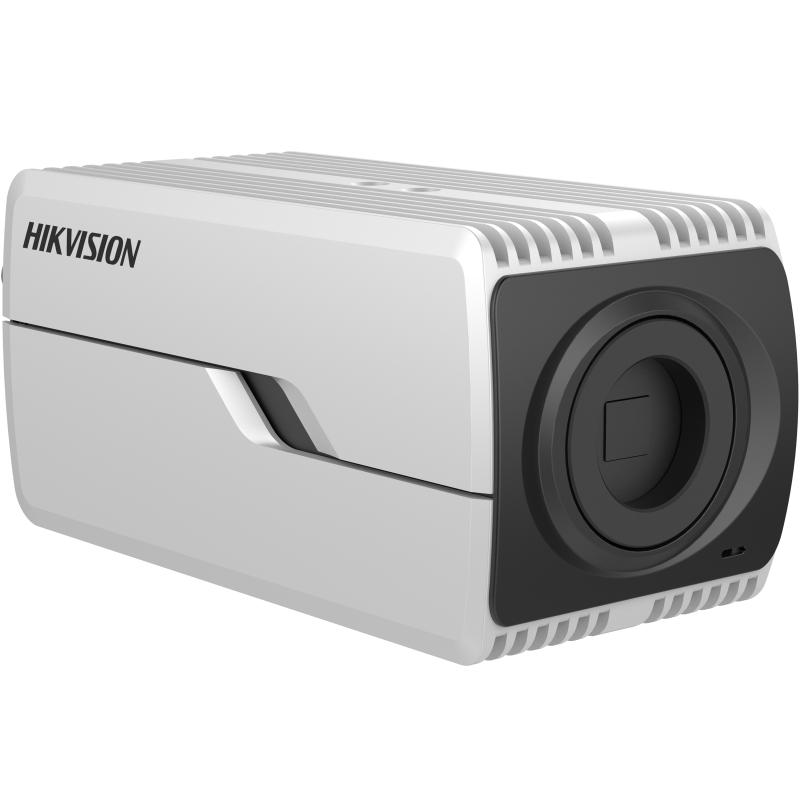

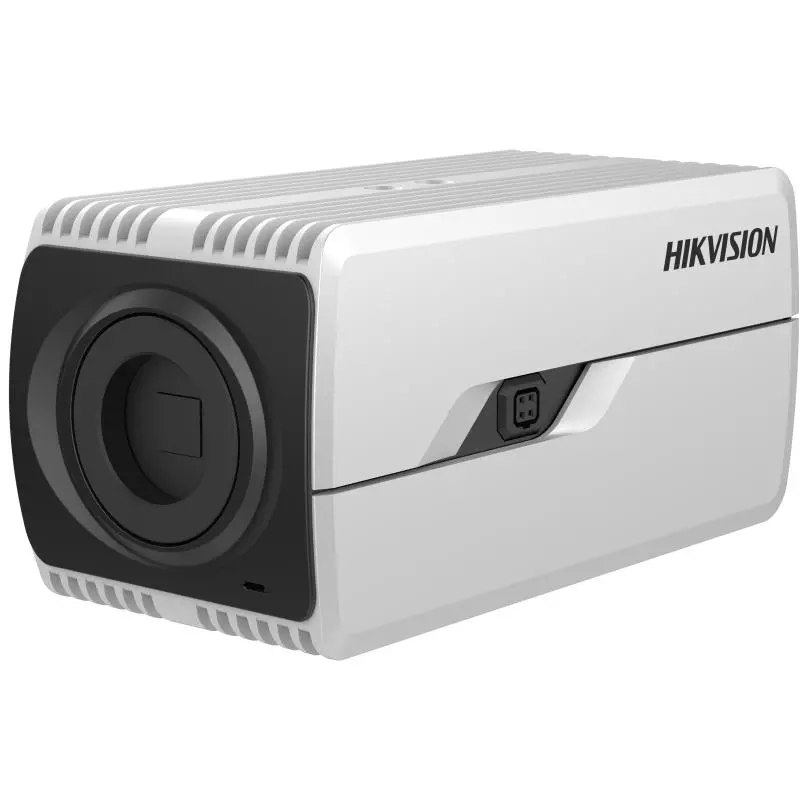

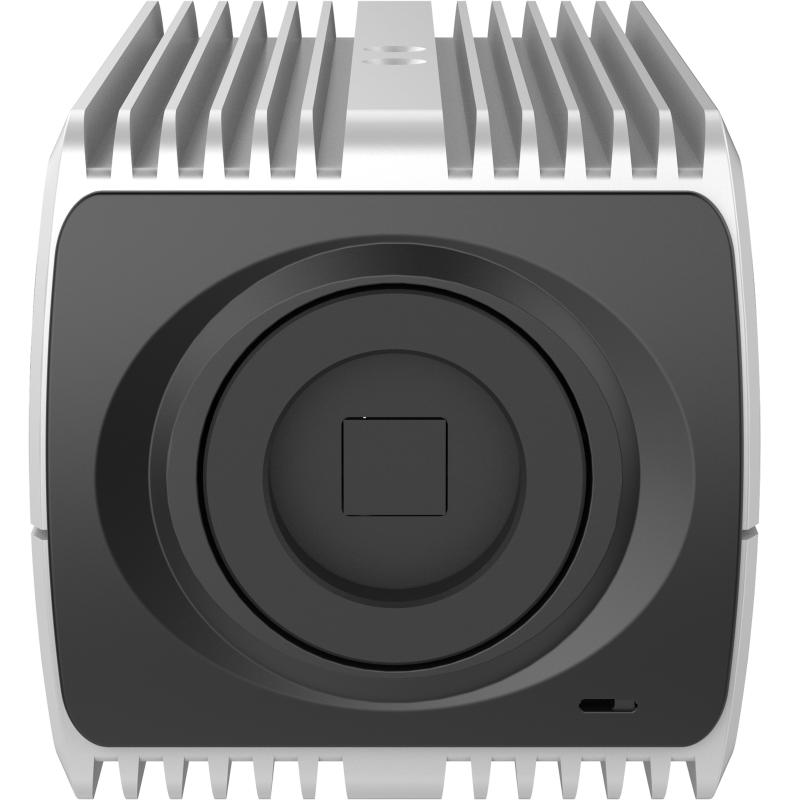

2 MP DeepinView varifokal Box kamera

2 MP təsvir ölçüsü ilə yüksək keyfiyyətli görüntüləmə
DarkFighter texnologiyası sayəsində zəif işıqda əla performans
140 dB WDR texnologiyası ilə güclü arxa işıq fonunda aydın görüntü
Ötürmə zolağına və yaddaş sahəsinə qənaət üçün səmərəli H.265+ sıxılma texnologiyası
Müxtəlif tətbiq ssenarilərini qarşılamaq üçün 5 stream
Real vaxt rejimində audio təhlükəsizlik üçün daxili mikrofon

Texniki pasport

Sürətli çatdırılma

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

ədəd stokda

2 saata çatdırılma

Sorğu əsasında

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON)

B/W: 0.0001 Lux @ (F1.2, AGC ON)
Shutter Time1 s to 1/100,000 s
Day & Night
IR cut filter

Blue glass module to reduce ghost phenomenon

Lens
Lens MountCS mount

AI Open Platform
Model Specification
Up to 4 models,

Model type: detection model, classification model, mixed model (detection model and classification model)

Video
Main Stream
50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 480, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50 Hz: 25 fps (704 × 480, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream
50 Hz: 25 fps (704 × 480, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)4 fixed regions for each stream
Target CroppingYes
e-PTZSupport Patrol and Auto Tracking settings

Audio
Audio TypeMono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)140 dB
Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
SNR≥ 52 dB
Privacy Mask8 programmable polygon privacy masks
Image StabilizationEIS
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface
Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface1 RJ45 100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio1 input (line in), 1 output (line out), 3.5 mm connector
Built-in MicrophoneYes,1 built-in microphone
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Power Output12 VDC, max. 100 mA
Fiber OpticalWith /F11: 1 LC fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 155 Mbps transmission rate

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis
Smart Eventscene change detection,audio exception detection,defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function
Multi-target-type Detection
Supports simultaneous detection and capture of human body, face, and vehicle,

Gets 7 face features,

Gets 13 human body features,

Gets 2 vehicle features,

Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,

Supports dynamic mosaic mask
Face Capture
Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,

Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

Uploads face with background and closed-up face pictures,

Supports best shot and quick shot for capture mode,

Supports dynamic mosaic mask,

Gets 7 face features
Face Comparison
Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,

Supports face library encryption
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Support combined event alarm triggering
People Counting
Supports Multi-Dimension People Counting,

Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

Supports real-time uploading and uploading by statistic cycle,

Supports generating daily, weekly, monthly or annually reports,

Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,

Supports face feature deduplication,

Supports people flow data replenishment
Queue Management
Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: regional people queuing-up, waiting time detection

Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

Supports raw data export for further analysis

Supports real-time data uploading and scheduled data uploading

Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Heat Map
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

Two report types are available, space heat map and time heat map line chart.
Hard Hat Detection
Detects up to 30 human targets simultaneously

Supports up to 4 shield regions
MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
Regional People Counting
Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

Supports searching real-time number of people

People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
On/Off Duty Detection
Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: absence detection, on/off duty detection

Supports parameter settings: person on duty, absence duration

General
Power
12 VDC ± 20%, 0.9 A, max. 10.8 W, two-core terminal block

24 VAC ± 20%, 0.44 A, max. 10.4 W, two-core terminal block

PoE: IEEE 802.3af, Type 1, Class 3, 36 V to 57 V, 0.33 A to 0.21 A, max. 11.6 W
MaterialAluminum alloy body
Dimension142.5 mm × 69.8 mm × 68 mm (5.61″ × 2.75″ × 2.68″)
Package Dimension315 mm × 140 mm × 140 mm (12.4″ × 5.51″ × 5.51″)
Approx. 730 g (1.96 lb.)
With Package WeightApprox. 1115 g (2.99 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat, mirror, password protection, one-key reset
Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

Approval
EMC
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
