Hikvision DS-2CFS04/4G(Cold Proof)

Artikul: HC-DS-2CFS04/4G(Cold-Proof)

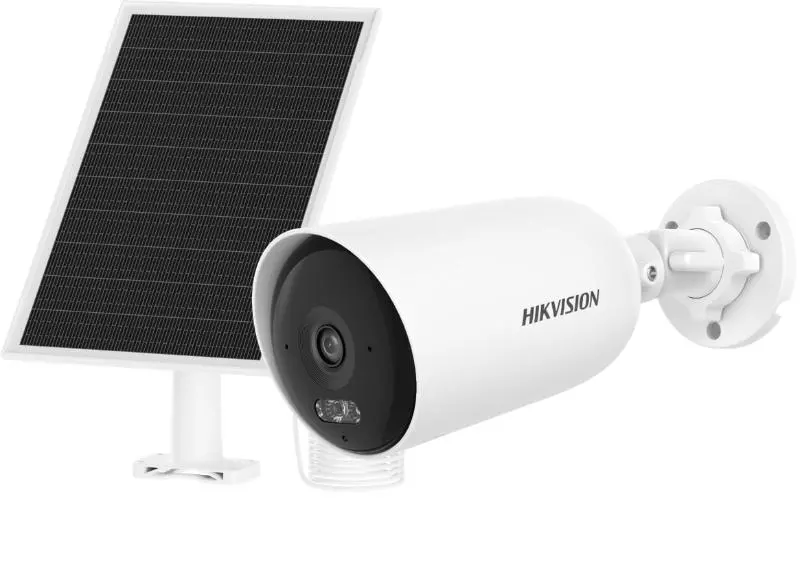

Hikvision DS-2CFS04/4G(Cold Proof) — 4MP 24/7 günəş enerjili 4G Cold Proof kamera

Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON)
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Focal Length & FOV: 2.8 mm, horizontal FOV 98.5°, vertical FOV 53.1°, diagonal FOV 115.9° 4 mm, horizontal FOV 78.3°, vertical FOV 42.8°, diagonal FOV 91.2
Lens Type: Fixed focal lens, 2.8 and 4 mm optional

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Lens
Focal Length & FOV2.8 mm, horizontal FOV 98.5°, vertical FOV 53.1°, diagonal FOV 115.9°
4 mm, horizontal FOV 78.3°, vertical FOV 42.8°, diagonal FOV 91.2
Lens TypeFixed focal lens, 2.8 and 4 mm optional
ApertureF1.6
Lens MountM12
Iris TypeFixed

O2DCPVS
DORIFixed lens:
2.8 mm D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m
4 mm D: 78.0 m, O: 31 m, R: 15.6 m, I: 7.8 m

Video
Main Stream50 Hz: 12.5 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
Video Compression Main stream: H.265
Video Bit Rate32 Kbps to 8 Mbps
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR

Interface
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in MicrophoneYes,1 built-in microphone
Reset KeyYes
Built-in SpeakerYes, 1 built-in speaker

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle))
Linkagenotify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card

General
Power5 V, 2 A
MaterialPlastic
DimensionØ81.6 mm × 221.3 mm (Ø3.21″ × 8.71″)
Package Dimension320 mm × 228 mm × 148 mm (12.60″ × 8.98″ × 5.83″)
Approx. 510 g (1.12 lb.)
With Package WeightApprox. 1560 g (3.44 lb.)
Startup and Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
General Functionmirror,flash log
Storage Conditions-20 °C to 25 °C (-4 °F to 77 °F). Humidity 95% or less (non-condensing)

Battery
Battery TypeLithium
Capacity10000 mAh (3.7 V)
Max. Charging Voltage8.4 V
Battery Voltage 6 V to 8.4 V
Operating TemperatureCharging: -10°C to 45°C (14°F to 113°F)
Discharging: -20°C to 50°C (-4°F to 131°F)
Cycle LifetimeCap(800th)≥80%

Approval
RFCE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIP66: IEC 60529-2013

Solar Power
Solar Panel TypeMonocrystalline silicon solar panel
Power Consumption8 W
Solar Panel Dimensions & Weight263.8 mm × 171.7 mm × 18.5 mm (10.39″ × 6.76″ × 0.73″)/ 450 g (0.99 lb.)
Working Temperature-40 °C to 85 °C (-40°F to 185°F)
