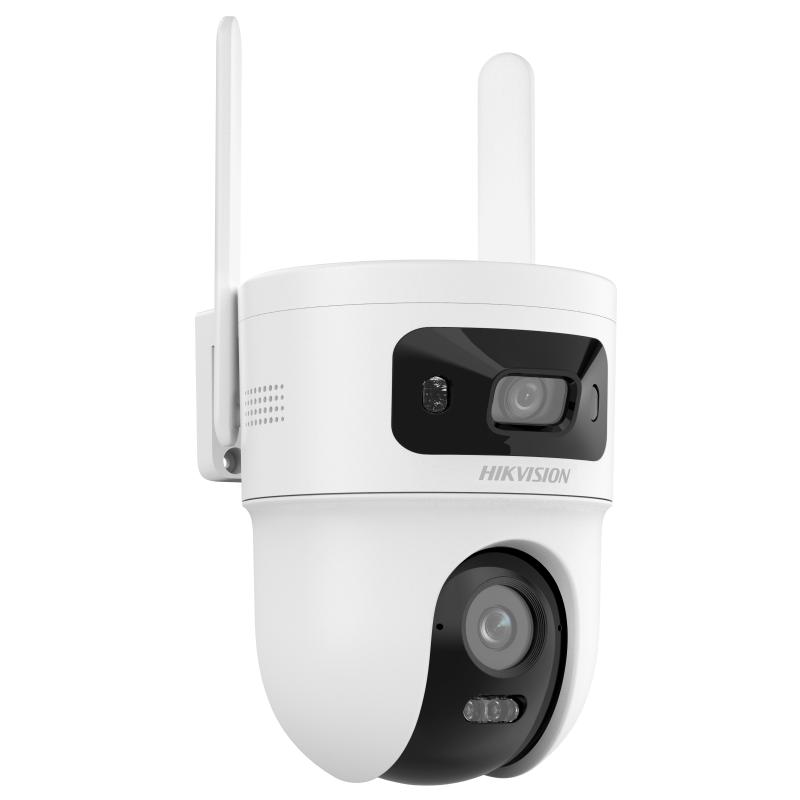

Hikvision DS-2CFMP8-D/4G

Artikul: HC-DS-2CFMP8-D/4G

Hikvision DS-2CFMP8-D/4G — 8MP 4G Dual-lens çöl PT kamera

Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON)
Day & Night: IR cut filter
Angle Adjustment: Pan: -170° to 170°,tilt: 0° to 80°
Focal Length & FOV: 2.8 mm, horizontal FOV 95.5°, vertical FOV 53.4°, diagonal FOV 110.8° 4 mm, horizontal FOV 73.5°, vertical FOV 39.7°, diagonal FOV 88°
Lens Type: Fixed focal lens Bullet channel: 2.8 mm PT channel: 4 mm
Aperture: F2.0

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Lens
Focal Length & FOV
2.8 mm, horizontal FOV 95.5°, vertical FOV 53.4°, diagonal FOV 110.8°
4 mm, horizontal FOV 73.5°, vertical FOV 39.7°, diagonal FOV 88°
Lens Type
Fixed focal lens
Bullet channel: 2.8 mm
PT channel: 4 mm
Aperture
F2.0
Lens Mount
M12
Iris Type
Fixed

O2DCPVS
O2DCPVS
2.8 mm, O: 77.6 m, O: 38.8 m, D: 19.4 m, P: 12.4 m , C: 6.2 m, V: 3.1 m, S: 1 m
4 mm, O: 102.6 m, O: 51.3 m, D: 25.7 m, P: 16.4 m , C: 8.2 m, V: 4.1 m, S: 1.4 m

Network
Protocols
HTTP, ICMP, DNS, HTTPS, NTP, TCP/IP, IPv4, DHCP, SSL/TLS, RTP, RTSP, UDP, IGMP, QoS
API
EZVIZ
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Client
Hik-Connect

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes,1 built-in microphone
Reset Key
Yes
Built-in Speaker
Yes, 1 built-in speaker

Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
Linkage
notify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card

General
Power
12 V, 1.5 A, max. 18 W
Material
Plastic
Dimension
110.8 mm × 145.4 mm × 152.2 mm (4.36″ × 5.73″ × 5.99″)
Package Dimension
185 mm × 145 mm × 198 mm (7.28″ × 5.71″ × 7.80″)
Approx. 695 g (1.53 lb.)
With Package Weight
Approx. 1040 g (2.29 lb.)
Startup and Operating Conditions
-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
Storage Conditions
-30 °C to 50 °C (-22 °F to 122 °F). Humidity 70% or less (non-condensing)
Language
English
Flashing Light
NA

Approval
RF
CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
