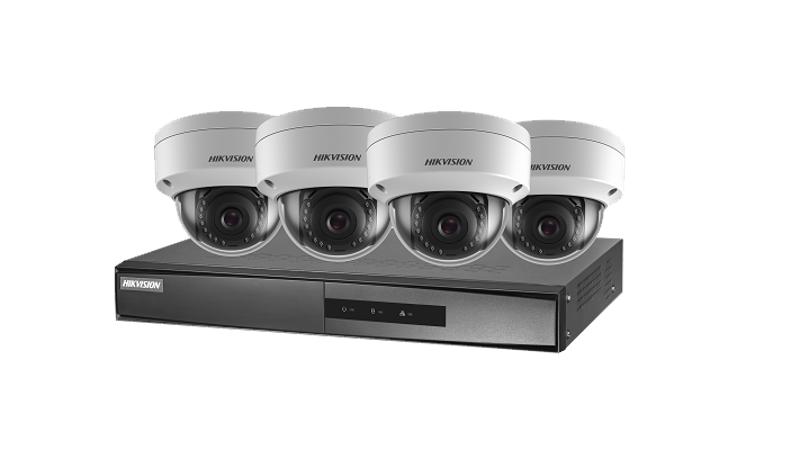

Qiymət sorğusu- Camera
- Camera Case TypeDome
- Image Sensor1/2.8″ Progressive Scan CMOS
- Min. Illumination0.028 Lux
- Shutter Speed1/3 s to 1/100,000 s
- Day &NightIR cut filter
- WDRDWDR
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
- Protection LevelIP67;IK10
- MaterialFront cover: plastic, back cover & bracket: metal
- Wi-Fi SupportNo
- Camera/General
- Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial plug power, or PoE (802.3af, class 3)
- Consumption 12 VDC, 0.4 A, Max: 5 W, or PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
- Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity95% or less (non-condensing)
- Dimension (W × D × H)Ø 111 mm × 82.4 mm (4.4″ × 3.2″)
- Approx. 400 g (0.9 lb)
- Camera/Lens
- Focal Length2.8 mm
- ApertureF2.0
- FocusFixed
- FOVHorizontal FOV: 114.8°, vertical FOV: 62°, diagonal FOV: 135.5°
- Lens MountM12
- Camera/IR
- IR RangeUp to 30 m
- Camera/Compression Standard
- Video Compression H.265+;H.265;H.264+;H.264;MJPEG
- H.264 TypeMain Profile/High Profile/Baseline Profile
- H.264+Main Profile
- H.265 TypeMain Profile
- H.265+Main Profile
- Video Bit Rate32 Kbps to 8 Mbps
- Camera/Image
- Max. Resolution2MP
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-stream
50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
- Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch Auto/Scheduled/Day/Night
- Camera/Network
- Alarm TriggerMotion detection, video tampering alarm, illegal login
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Camera/Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageN/A
- Audio I/ONo
- Video OutNo
- Alarm I/ONo
- Reset ButtonNo
- NVR/Video and Audio
- IP Video Input4-ch
- Incoming/Outgoing Bandwidth40 Mbps/60 Mbps
- HDMI/VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- NVR/Decoding
- Decoding FormatH.265+;H.265;H.264+;H.264
- Capability2-ch@1080p/1-ch@4 MP
- NVR/Network
- Network Interface1, RJ45 10/100M Ethernet interface
- Network ProtocolIPv6, UPnP™, NTP, SADP, DHCP
- Remote Connection16
- NVR/PoE
- Interface4-ch
- Power≤ 36 W
- StandardIEEE 802.3 af/at
- NVR/Auxiliary Interface
- SATA1
- CapacityUp to 6 TB capacity for each disk
- USB InterfaceRear panel: 2 × USB 2.0
- Alarm In/OutNo
- NVR/General
- Power Supply48 VDC
- Consumption (without HDD and PoE off)≤ 10 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
- Weight (without hard disk)≤ 1 kg (2.2 lb)
- Kit
- Accessories
Power: 1 power cable
Network cable: 4 × 18.3 m (60 ft) video and power cable
HDMI cable: 1 HDMI cable
- Hard DrivePre-installed 1 TB HDD
- CertificationFCC, CE
- Weight (with package)≤ 6.5 kg (14.3 lb)
