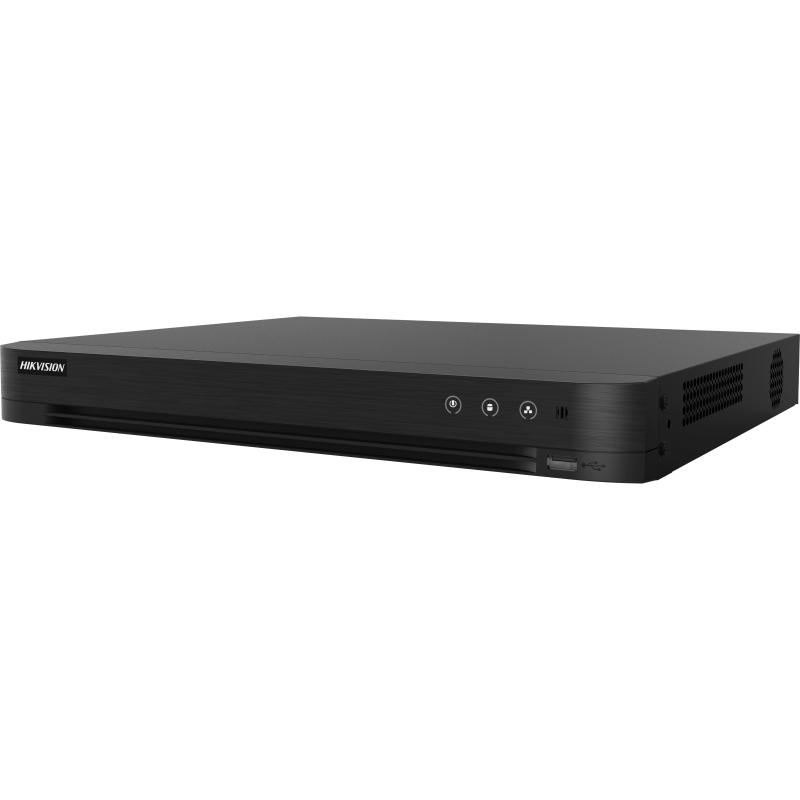

1U-da AcuSense ilə 4 Kanallı 5MP H.265 Mini DVR
1U-da AcuSense ilə 4 Kanallı 5MP H.265 Mini DVR
- Video and Audio
- IP Video Input
2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback 16-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution1080p lite/720p/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
For 1080p and 720p stream access: CIF/QVGA@15fps
For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 4 Mbps
- Dual-streamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Remote Connection128
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,UPnP™, HTTPS, ONVIF
- Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1, SATA interface
- CapacityUp to 6 TB capacity for each disk
- USB InterfaceRear panel: 2 × USB 2.0
- General
- Power Supply12 VDC, 2 A
- Consumption≤ 18 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)263 × 220 × 48 mm (10.3 × 8.7 × 1.9 inch)
- ≤ 2.2 kg (4.9 lb)
