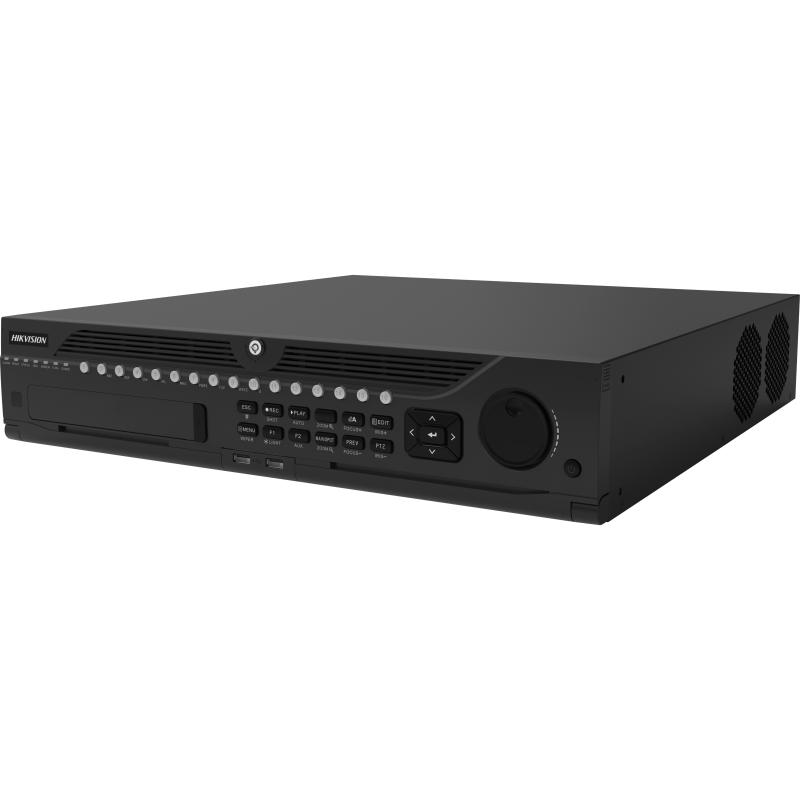

Hikvision iDS-9032HQHI-M8/S

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; ;Quick search by object or event type is supported;

Human/Vehicle Analysis

Up to 8-ch, for channel 1/2/3/4/17/18/19/20 only

IP Video Input

16-ch (up to 48-ch);;Up to 6 MP resolution;;Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

32-ch;;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Incoming Bandwidth

200 Mbps

Outgoing Bandwidth

160 Mbps

HDTVI Input

3K, 4 MP, 1080p25, 1080p30, 720p25, 720p30

AHD Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI 1 Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI1/VGA simultaneous output, HDMI2/VGA independent output

Audio Input

16-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output

2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)

Synchronous Playback

16-ch

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled: ;3K lite/4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF;;When 1080p Lite mode is enabled: ;3K lite/4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:;When 1080p Lite mode is not enabled: ;For 3K stream access: ;3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps;For 4 MP stream access:;4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) ;For 1080p stream access: ;1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25fps (P)/30 fps (N);For 720p stream access: ;720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N);When 1080p Lite mode is enabled: ;3K lite@12fps;4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N);Sub-stream: ;WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Video Bitrate

32 Kbps to 6 Mbps

Dual-stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP

Remote Connection

128

Network Interface

2, RJ45 10M/100M/1000M self-adaptive Ethernet interface

SATA

8 SATA interfaces

eSATA

Support

Capacity

Up to 12 TB capacity for each disk

Serial Interface

RS-232, RS-485 (full-duplex), Keyboard

USB Interface

Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0,

Alarm In/Out

16/8

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 40 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

446 × 462 × 88 mm (17.6 × 18.2 × 3.5 inch)

Weight

≤ 10 kg (without HDD, 22.0 lb.)
