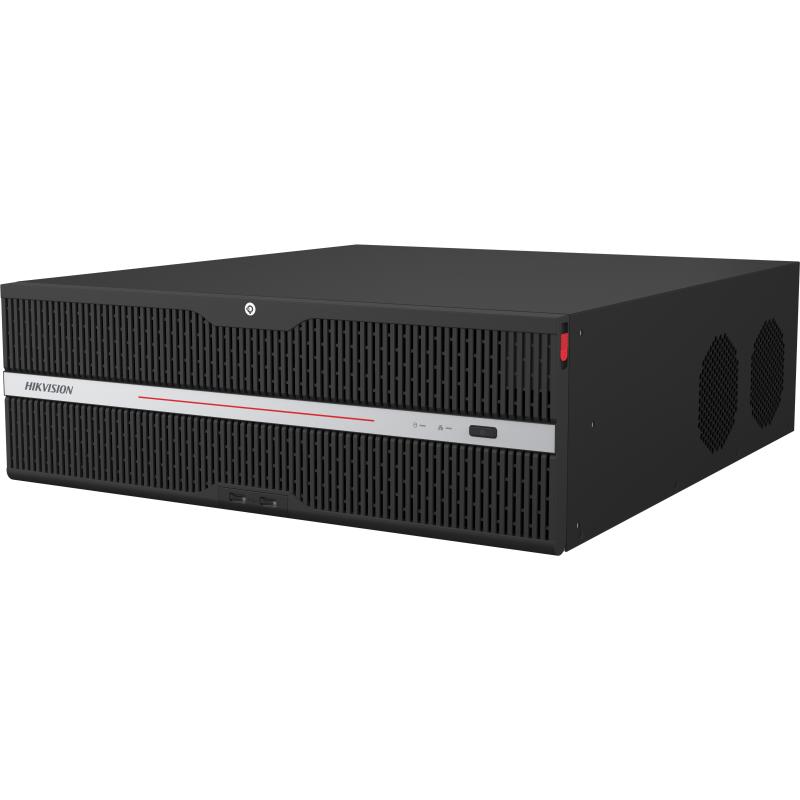

Hikvision iDS-9632NXI-M16/X

Artikul: HC-iDS-9632NXI-M16/X

32 kanallı 3U 8K DeepinMind NVR

2-kanal@32 MP / 2-kanal@24 MP / 4-kanal@12 MP / 8-kanal@8 MP / 16-kanal@4 MP / 32-kanal@1080p dekodlaşdırma tutumu
H.265+/H.265/H.264+/H.264 video formatları
32 kanala qədər IP kamera qoşulmasını dəstəkləyir
Deep learning alqoritmi əsasında intellektual analitika
24 kanala qədər perimetr mühafizəsi
Video axını üçün 16 kanala qədər üz tanıma və ya üz şəkli üzrə 32 kanala qədər üz tanıma
12 kanala qədər video strukturlaşdırılması
8 kanala qədər IP dinamik qoşulmasını dəstəkləyir

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Anbarda var

2 saata çatdırılma

5 962,00 ₼

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
Engine2, each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison (Captured from Camera)
32-ch (16-ch for each engine);
Comparison speed: 48 pictures per second
Facial Detection and Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP

AcuSearch
By Camera
All channels ,up to691,200 targets/day
The camera should enable AcuSearch function
By NVRup to 8-ch,up to691,200 targets/day

Perimeter Protection
By NVR
perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP
perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
By Cameraperimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization
Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
Face Picture LibraryUp to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison
16-ch;
Comparison speed: 32 pictures per second

Video and Audio
IP Video Input
32-ch
Up to 32 MP resolution
Incoming Bandwidth320 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.
Incoming Bandwidth (RAID Mode)320 Mbps
Outgoing Bandwidth (RAID mode)400 Mbps
VGA 1 Output1920 × 1080/60Hz
VGA 2 Output1920 × 1080/60Hz
Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding FormatH.265/H.265+/H.264/H.264+
Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Synchronous Playback16-ch
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Network
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP

Auxiliary Interface
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output
SATA16 SATA interfaces; 3.5-inch HDD
eSATA1 eSATA interface
CapacityUp to 16 TB capacity for each HDD
Serial Interface1 RS-232, 1 RS-485 (full-duplex)
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Alarm In/Out16/9

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 50 W (without HDD)
Working Temperature-10 to 55°C (14 to 131° F)
Working Humidity10 to 90%
Dimension (W × D × H)442× 494× 150 mm (17.4″× 19.5″ × 5.9″)
≤ 13 kg (without HDD, 28.7 lb.)

Certification
Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
FCCPart 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
