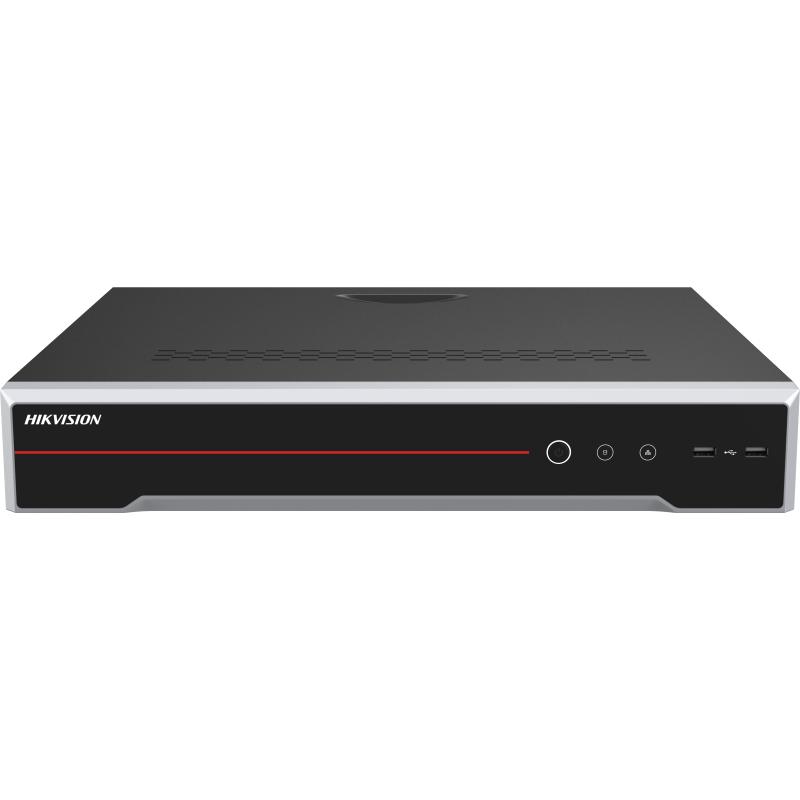

8 kanallı 1U, 8 PoE, 8K DeepinMind NVR
8 kanallı 1U, 8 PoE, 8K DeepinMind NVR
Sorğu əsasında
Qiymət sorğusu- Intelligent Analytics
- AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch, AcuSeek
- AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
- Engine1. One GPU Engine, only for AcuSeek modeling and OVD (two algorithm enable at the same time)
2. One GPU Engine, can run an intelligent algorithm, engine mode is adjustable, performance of each GPU engine (choose 1 from 4):
Facial recognition: 8-ch (4MP) video target capture or 16-ch image comparison
Perimeter protection: 12-ch (2MP) video analysis or 16-ch image analysis
Video Structuralization: 8-ch (2MP) video structured analysis
AcuSearch: support 8-ch (2MP) by NVR, all channels AcuSearch modeling and 8 face picture modeling per second
- AcuSearch
- By Camera1. All channels, up to 300,000 targets per day.2. The camera should enable AcuSearch function.
- By NVR1. Up to 8ch-2MP / 4ch-4MP / 2ch-8MP normal IP camera access to achieve AcuSearch.2. One GPU engine for target capture and AcuSearch modeling.3. Face comparison speed: 8-ch
- AcuSeek
- Performance1. The NVR supports 8ch-2MP / 4ch-4MP / 2ch-8MP normal IP camera access to achieve AcuSeek.
2. One GPU engine for AcuSeek modeling
3. If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 300,000 targets per day. - Search LanguageEnglish, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic, Turkish, Spanish
- Perimeter Protection
- By NVRPerimeter protection without Large Model: 12ch 2 MP or 8ch-4MP or 4-ch 8MP
- By CameraPerimeter protection powered by Large Model with AcuSense cameras: All channels
- Video Structuralization
- Structured Analysis8-ch 2 MP
6-ch 4 MP
3-ch 8 MP
- Target Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 32 face picture libraries, up to 100,000 face pictures in list library
- Face Picture Comparison (Captured from Camera)32-ch (16-ch for each engine); Comparison speed: 24 pictures per second
- Facial Detection and Analytics PerformanceSupported face capture channels: up to 2MP-8ch / 4MP-8ch / 8MP-4ch.
- ANPR
- By CameraAll channels
- Plate AttributesPlate number, license plate color, license plate type
- Vehicle AttributesVehicle brand, vehicle color, vehicle type
- Video and Audio
- IP Video Input32-ch Up to 32 MP resolution *: NVR supports up to 8-ch 32 MP / 24 MP IP video inputs.
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth400 Mbps
- HDMI 1 Output8K（7680×4320）/30Hz，4K（3840×2160）/60Hz，4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz
- HDMI 2 Output4K（3840×2160）/60Hz，4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. - VGA Output1080P (1920 × 1080)/60 Hz
- Video Output ModeHDMI1/VGA simultaneous output
HDMI2/VGA independent output - Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@16 MP (30 fps)/8-ch@8 MP (30 fps) /16-ch@4MP(30fps)/32-ch@2MP(30fps)
- Synchronous Playback16-ch
- Recording Resolution32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA4 SATA interface
- CapacityUp to 20 TB capacity for each HDD
- Serial Interface1 RS-232, 2 RS-485 (half-duplex)
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/4
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian,Hebrew,Farsi,Azeri,Burmese
- Power Supply100 to 240 VAC, 50 to 60 Hz,150W
- Consumption≤ 50 W
- Working Temperature-10 to 55° C (14 to 131° F)
- Working Humidity10 to 90%
- Dimension (W × D × H)440 × 390 × 72 mm (17.32″× 15.35″× 2.83″)
- ≤ 5 kg (without HDD, 11 lb.)
- Certification
- Obtained CertificationCE, CB, RCM, LOA, ROHS, WEEE, REACH, 运输鉴定
- CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
