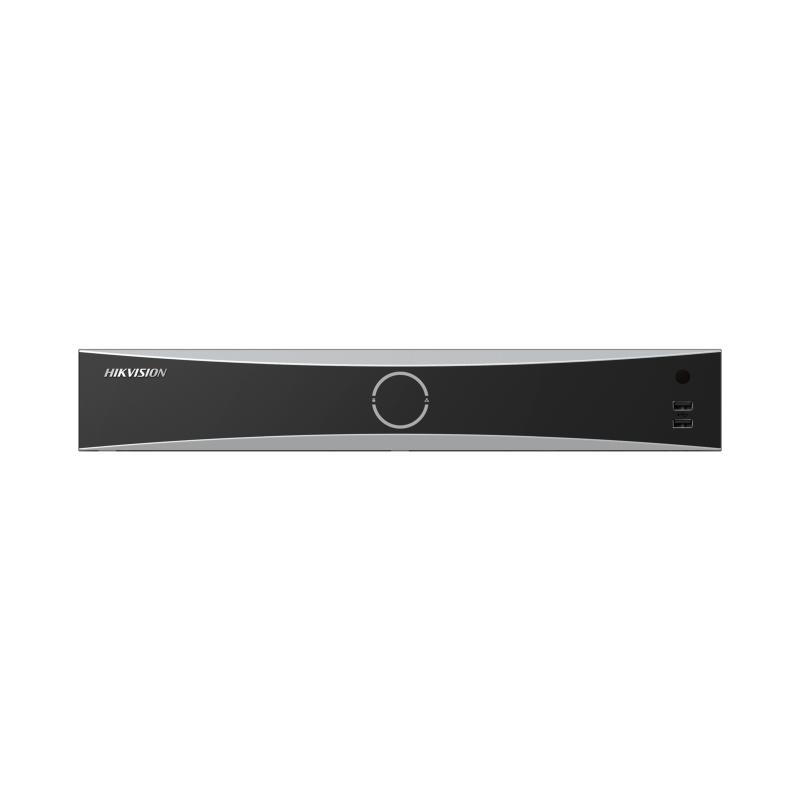

8 kanallı 1U, 8 PoE, 8K DeepinMind NVR
8 kanallı 1U, 8 PoE, 8K DeepinMind NVR
Sorğu əsasında
Qiymət sorğusu- Decoding
- Live view / Playback resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Decoding formatH.265/H.265+/H.264/H.264+/MPEG4
- Synchronous playback16-ch
- Capability16-ch @ 1080p
- Data Storage
- Hard Disk4 SATA interfaces for 4HDDs/Up to 8 TB capacity for each HDD/1 eSATA interface
- Network
- Incoming bandwidth320 Mbps
- Outgoing bandwidth256 Mbps
- Remote connection128
- External interface
- Serial interfaceRS-485 (half-duplex), RS-232, Keyboard
- Network interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- USB interfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm in/out16/8
- Human/Vehicle analysis
- False alarm filteringUp to 16-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- Video/Audio input/output
- IP video input16-ch Up to 12 MP resolution
- Two-way audio input1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Video/Audio output
- CVBS output (Optional)1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI1 output
resolution4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K（2560×1440）/60Hz，1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz - HDMI2 output
resolution1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz，1024×768/60Hz - Recording resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio output1-ch, RCA (Linear, 1 KΩ)
- Network management
- Network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Power≤ 80 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Consumption (without hard disk)≤ 30 W
- Chassis19-inch rack-mounted 1.5U chassis
- Dimensions(W × D × H)445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
- Weight(without hard disk)≤ 5 kg (11 lb)
