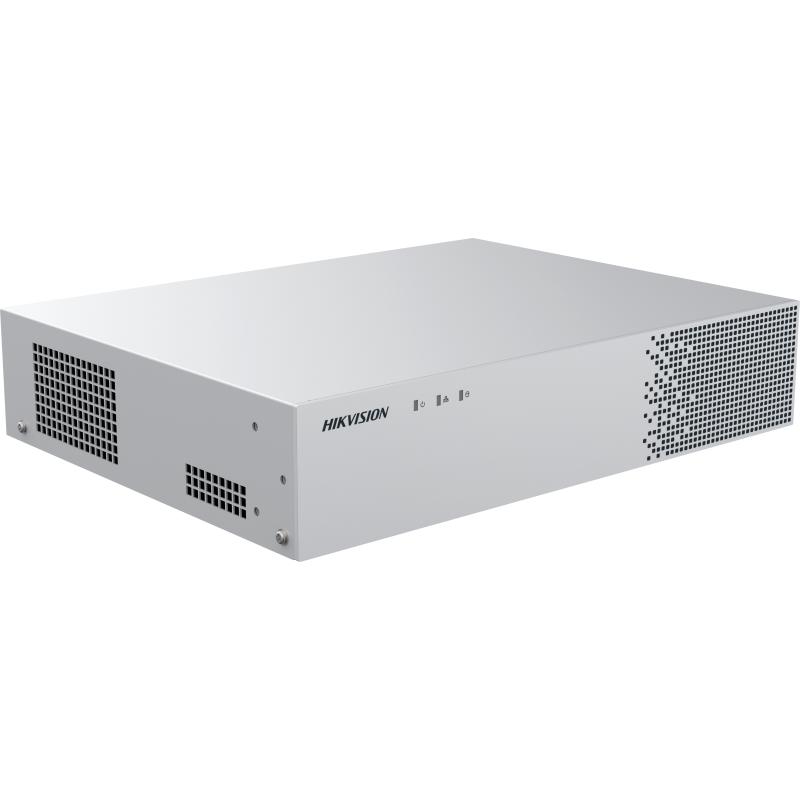

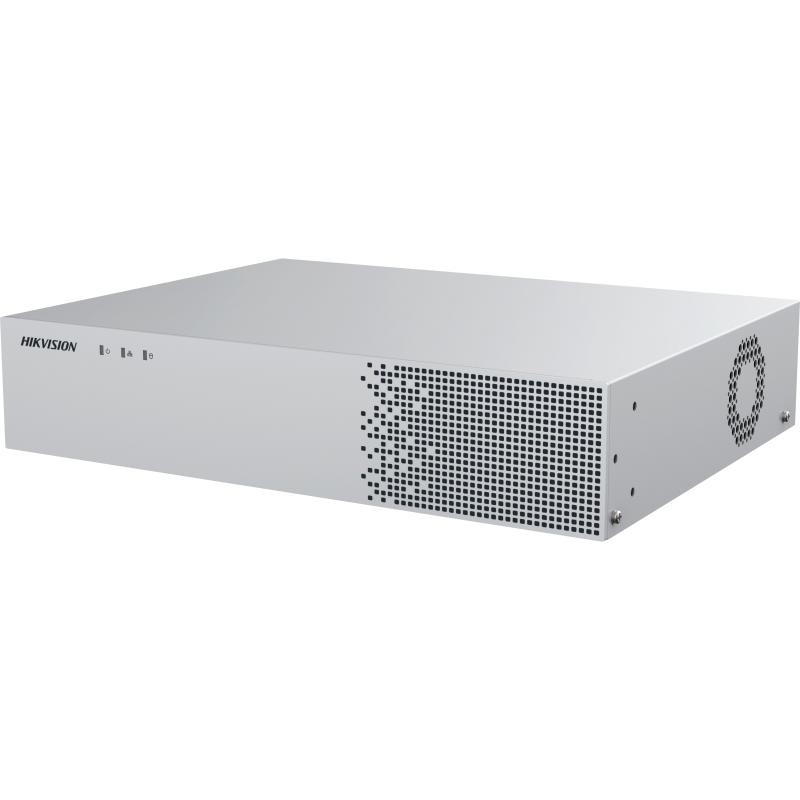

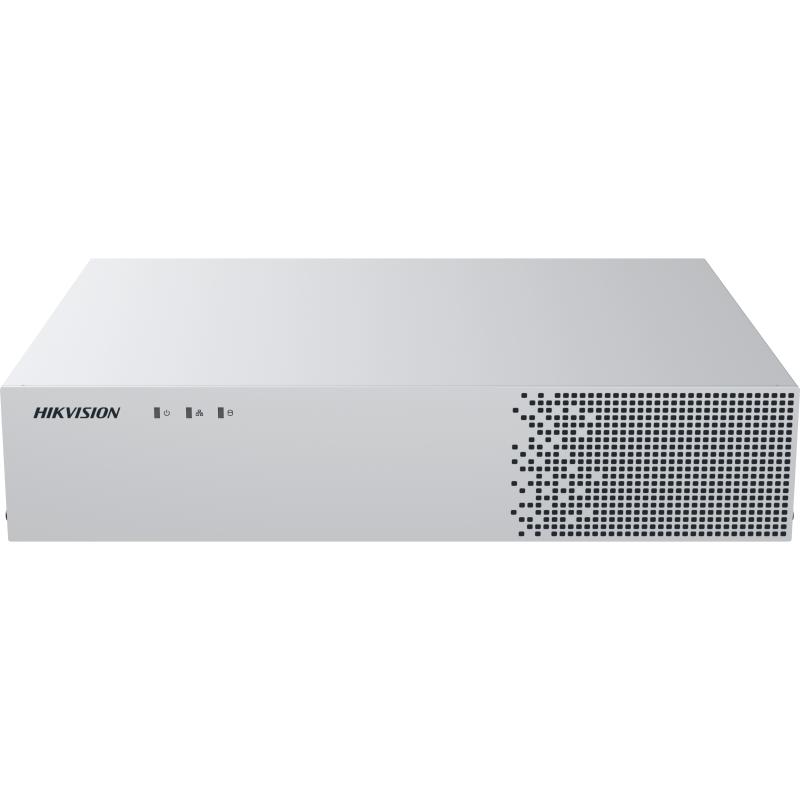

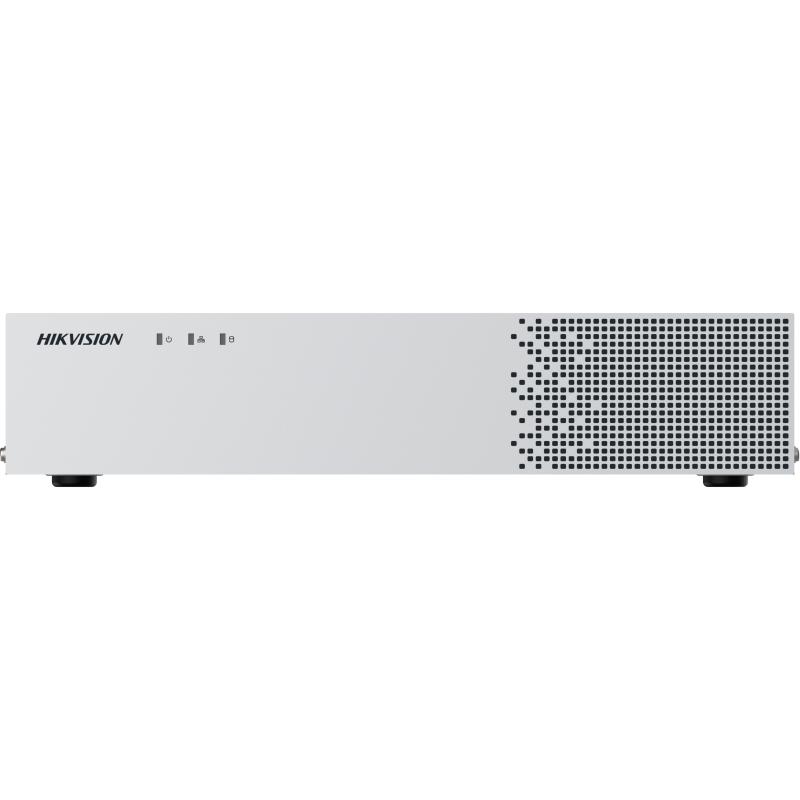

8 kanallı 1U, 8 PoE, 8K DeepinMind NVR
8 kanallı 1U, 8 PoE, 8K DeepinMind NVR
Sorğu əsasında
Qiymət sorğusu- Intelligent Analytics
- AI by NVR
Pre-installed AI Algorithm Package
Human (3 Algorithm models )
1. Facial recognition:
2. People counting: regional people counting, people counting statistics
3. PPE: safety helmets and reflective vests detection
Vehicle (2 Algorithm models )
1. Vehicle attributes: vehicle brand,vehicle color, vehicle type
2. Non-motorized vehicle detection: motorcycle, bicycles
Dangerous Event (2 Algorithm models )
1. Fire and smoke detection
2. Occupation of fire escape
Behavior (3 Algorithm models )
1. Street level behavior : falling down detection, people gathering detection, fast
moving detection, physical conflict detection
2. Indoor: playing phone, sleeping on duty, absence, number of people allowed, overstaying detection
3. Perimeter: intrusion detection, line crossing detection, region entrance detection,
region exiting detection
4. Smoke detection, call detection
AIOP (Up to 16 models)
Model type: detection model, classification model, mixed model (detection model and
classification model)
1 engines in total, One engine can support four algorithm models;
each algorithm model supports one real-time video stream analysis or a maximum of 8
auto-switch video analyses (switch time between 10 to 3600 seconds)
- Engine2 * KT2(1 for live video analysis, 1 for lager model algorithm secondary analysis)
- AI Open Platform Performance
- Live Video AnalysisUp to 4-ch (4-ch@4 MP, 2-ch@6 MP, 1-ch @8 MP)
- Auto-Switch Video AnalysisUp to 16-ch (switching time should between 10 to 3600 sec)
- Scheduled Capture AnalysisUp to 16-ch (switch time should between 3 to 3600 seconds)
- Offline Picture Analysis4 image per GPU per second or 1 image per GPU per second ( Large model)
- Video and Audio
- IP Video Input16-ch
- Incoming Bandwidth128Mbps
- Outgoing Bandwidth256 Mbps
- Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
- HDMI Output
HDMI1：8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
HDMI2：4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- VGA OutputVAG1/VGA2:1080P (1920 × 1080)/60 Hz
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Decoding CapabilityUp to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP
- Synchronous Playback16-ch
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 16 TB capacity for each HDD,1 built-in 3.5-inch 1 TB SATA hard disk
- Serial Interface1 RS-232 interface, 2 RS-485 interface
- USB InterfaceRear panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/4
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply12 VDC, 5A
- Consumption≤ 60 W
- Working Temperature-10 to 55° C (14 to 131° F)
- Working Humidity10 to 90%
- Dimension (W × D × H)320 × 243 × 65 mm (12.6 × 9.6 × 2.6 inch)
- ≤ 5kg
