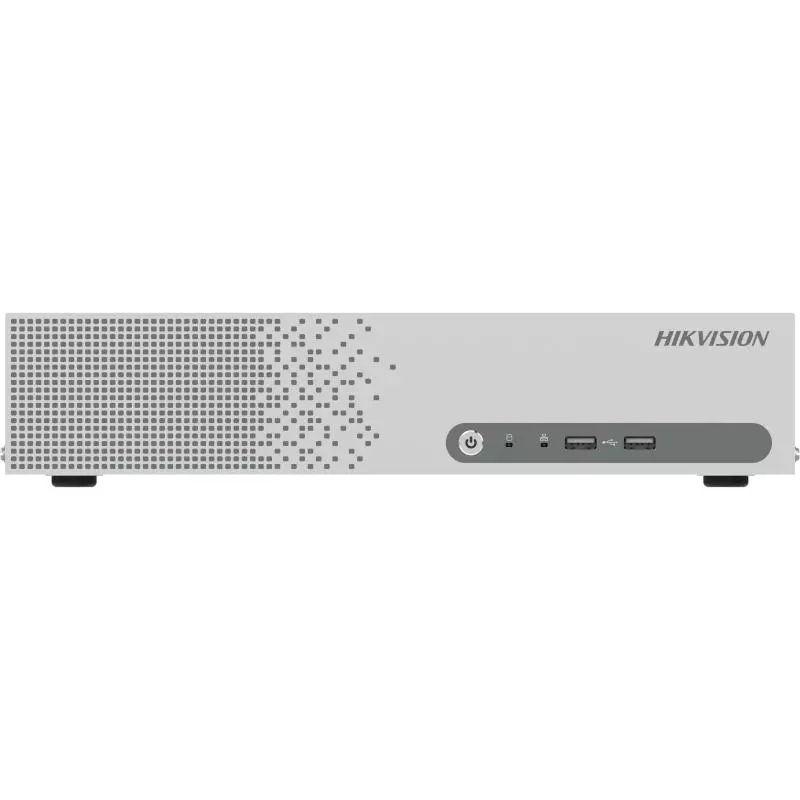

8 kanallı 1U, 8 PoE, 8K DeepinMind NVR
8 kanallı 1U, 8 PoE, 8K DeepinMind NVR
Sorğu əsasında
Qiymət sorğusu- AI Open Platform Performance
- Engine2 * KT5，1 for small model analysis as default , 1 for lager model algorithm secondary analysis,1 engine can support 4 algorithm models at the same time
- Live Video Analysis1 engine can support up to 8ch,(8ch@4MP，4ch @8MP)
- Auto-Switch Video Analysis1 engine can support up to 16ch,(switch time between 10 to 3600 seconds)
- Scheduled Capture Analysis1 engine can support up to 16ch, (switch time between 3 to 3600 seconds)
- Offline Picture Analysis4 images per GPU per second or 1 image per GPU per second ( Large model)
- Human
- Facial recognitionFace Capture/Face Picture Comparison(32 face libraries, 100, 000 pictures)
- Personnel ComplianceHard Hat/Reflective Cloth/Skin Exposure/Goggles/Smoking/Phone Call/Using Phone/Sleeping (Face down)/Sleeping (Reclining)/Absence/Seatbelt/Person Overstay/Person Loitering
- Workwear Registration and ComparisonWork uniform/Work hat
- People CountingRegional people counting/People counting statistics
- Street BehaviourViolent/Fall Down/Running/Gathering
- Vehicle
- Vehicle RecognitionExcavator/Bulldozer/Dump Truck/Concrete Pump Truck/Crane/Cement Tanker/Tower Crane/Truck/Oil Tank Truck/Electric Moped/Bicycle/Coach/Small Sized Vehicle/Forklift/Tricycle
- Environment
- Smoke and FireSmoke/Fire
- Perimeter ProtectionIntrusion detection/Line crossing detection/Region entrance detection/Region exiting detection
- Fire Escape Occupation DetectionFire_Escape_Occupation_Detection
- Object
- Object DetectionFire_Extinguisher/ Oxygen_Cylinder/ Acetylene_Cylinder/ Gas_Cylinder/ Fire_Extinguisher_Box/Fire_Blanket/ Banner/ Dustbin/Traffic_Cone
- AIOP
- AI Open Platform AlgorithmDetection model, Classification model, Mixed model (Detection model and
Classification model), Double detection model
- Video and Audio
- IP Video Input16-ch
- Incoming Bandwidth256 Mbps
- Outgoing Bandwidth256 Mbps
- Video Output ModeHDMI/VGA simultaneous output
- HDMI OutputHDMI1：8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
HDMI2：4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. - Audio Output1-ch, RCA (Linear, 1 KΩ)
- VGA Output1080P (1920 × 1080)/60 Hz
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Decoding CapabilityUp to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080P
- Recording Resolution16-ch
- Synchronous Playback32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 16 TB capacity for each HDD,1 built-in 3.5-inch 2 TB SATA hard disk
- eSATA1 eSATA interface
- Serial Interface1 RS-232 interface, 2 RS-485 interfaces
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
- Alarm In/Out16/4
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply12V DC, 7.5A
- Consumption≤ 60 W (without HDD)
- Working Temperature-10℃ to 55℃ (14℉ to 131℉)
- Working Humidity10% to 90%
- Dimension (W × D × H)320 mm × 224 mm × 65 mm
- ≤ 4 kg (without HDD)
