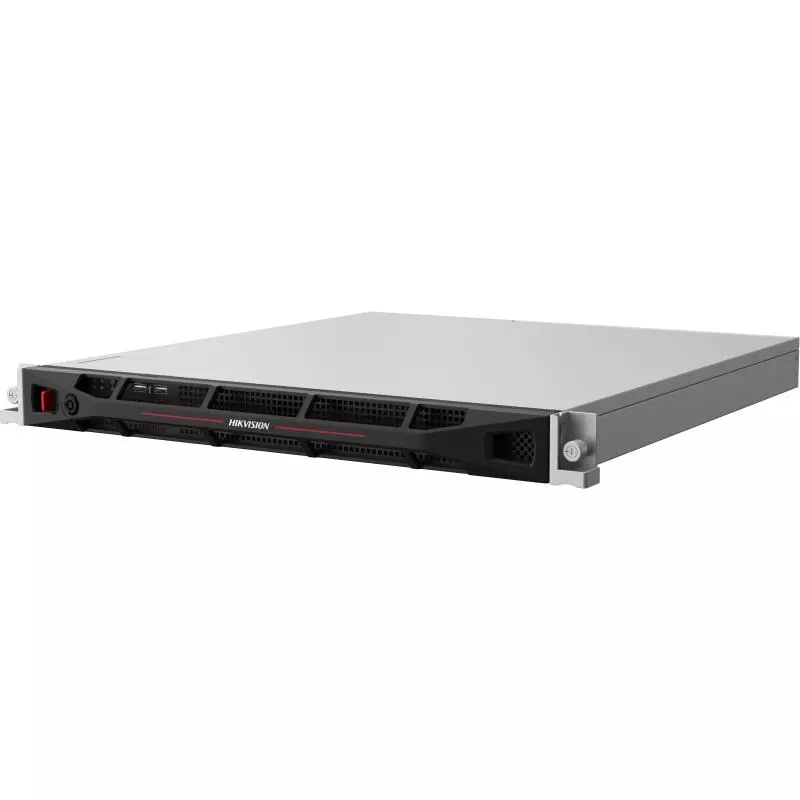

8 kanallı 1U, 8 PoE, 8K DeepinMind NVR
8 kanallı 1U, 8 PoE, 8K DeepinMind NVR
Sorğu əsasında
Qiymət sorğusu- Intelligent Analytics
- AI by NVR
Pre-installed AI Algorithm Package
Human (3 Algorithm models )
1. Facial recognition:
2. People counting: regional people counting, people counting statistics
3. PPE: safety helmets and reflective vests detection
Vehicle (2 Algorithm models )
1. Vehicle attributes: vehicle brand,vehicle color, vehicle type
2. Non-motorized vehicle detection: motorcycle, bicycles
Dangerous Event (2 Algorithm models )
1. Fire and smoke detection
2. Occupation of fire escape
Behavior (3 Algorithm models )
1. Street level behavior : falling down detection, people gathering detection, fast
moving detection, physical conflict detection
2. Indoor: playing phone, sleeping on duty, absence, number of people allowed, overstaying detection
3. Perimeter: intrusion detection, line crossing detection, region entrance detection,
region exiting detection
4. Smoke detection, call detection
AIOP (Up to 16 models)
Model type: detection model, classification model, mixed model (detection model and
classification model)
1 engines in total, One engine can support four algorithm models;
each algorithm model supports one real-time video stream analysis or a maximum of 8
auto-switch video analyses (switch time between 10 to 3600 seconds)
- Engine2 × GPU Card (1 Card = 4 * KT2 enine )
- AI Open Platform Performance
- Live Video Analysis16-ch 4 MP or 8-ch 6 MP or 4-ch 8 MP
- Auto-Switch Video Analysis64-ch
- Scheduled Capture Analysis64-ch
- Offline Picture Analysis4 image per GPU per second or 1 image per GPU per second ( Large model)
- Video and Audio
- IP Video Input
64-ch
Up to 8 MP resolution
- Incoming Bandwidth1024Mbps
- Outgoing Bandwidth1024Mbps
- HDMI Output1 × HDMI output
- VGA Output1 × VGA output
- Audio Output1-ch, 3.5mm interface
- Two-Way Audio1-ch, 3.5mm interface
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF
- Network
- Network Interface4, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Camera Access ProtocolONVIF profile S; ONVIF profile T (Version 2.2); RTSP
- Auxiliary Interface
- Serial Interface1 RS-232, 2 RS-485 (half-duplex)
- Alarm In/Out8/4
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
- Consumption≤ 400 W (without HDD)
- Working Temperature-10 to 55° C (14 to 131° F)
- Working Humidity10 to 90%
- Dimension (W × D × H)436 × 460 × 44 mm (17.17″ × 18.11″ × 1.73″)
- ≤ 20 kg (without HDD, 44.1 lb.)
- Certification
- Obtained CertificationCE, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
