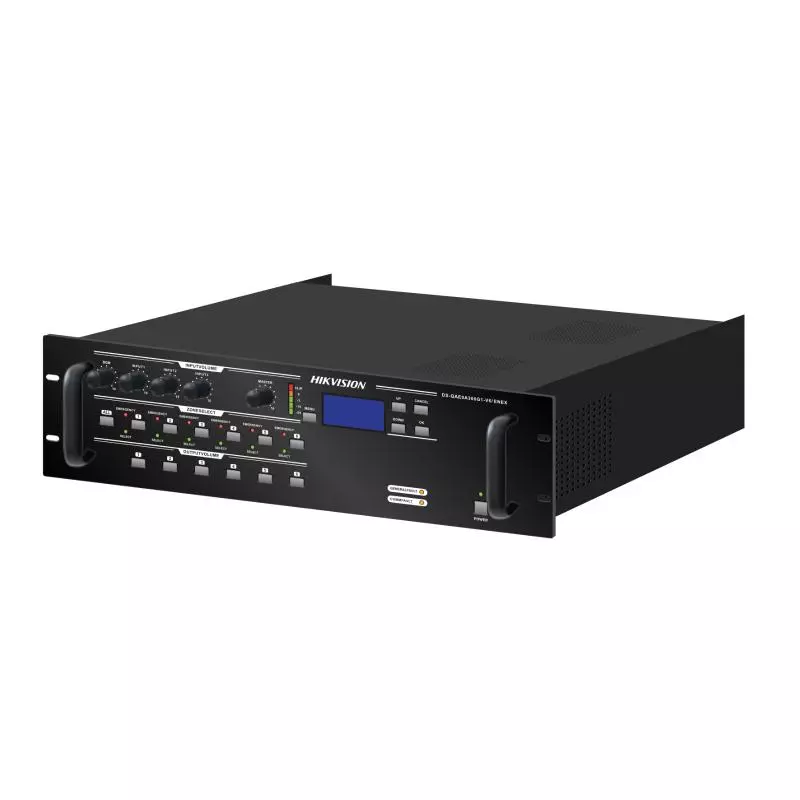

Hikvision DS-QAE0A240G1-VB6 — 240W 6-Zone analoq gücləndirici
Hikvision DS-QAE0A240G1-VB6 — 240W 6-Zone analoq gücləndirici
Sorğu əsasında
Qiymət sorğusu- Audio
- Frequency Response50 Hz-16 KHz,+/-3 dB
- THD and SNR
THD: ≤0.7% (1KHz)
SNR: ≥85 dB
- Audio Input
1.Input 1-3:-50dBx(MIC)/-10dB x(LINE)
2. 600ΩBGM 1-2:10dBx10KΩ
- Audio Output
6 ways of speaker outputs; Total output power not more than 360W.
The max mono ouput power=180W
- Remote Control Port
Connected to the DS-QAE0MP0G1/EN remote microphone.
The distance between the unit and remote microphone can reach 100 meters, Recommened to use (CAT5E-FTP).
- Backup ConnectionConnected to DS-QAE0A360G1-V6/ENB backup amplifier, Recommended to use CAT5E-STP.
- Extension Port
Total 6 ports which can be used to connect with the device DS-QAE0A360G1-V6/ENEX / DS-QAE0A150G1-V/
EN/300G1-V/EN/450G1-V/EN.
- Emergency Control Input2 way input, Available to connect with the fire center and process message control.
- General Emergency Control
Input 1-6: No-voltage contact input, short-circuit current below 2mA
Output 1-6: operation current: 10mA below.
- External Volume Intrusion Control6 ways of DC outputs, The voltage used to connect with the device which can be forcibly switched.
- BGM1/22 sets of lotus connectors, External audio source analog signal input.
- Common Control Input6 groups of terminal ports; Switching quantity signal input; None-voltage contace input; Short-circuit current below 2mA.
- Common Control Output
6 groups of terminal ports; Switching quantity signal output (relay isolation);
Operating current less than 10mA.
- Remote Control Device Port2 RJ45 ports used to connect with remote emergency microphone (DS-QAE0MP0G1/EN).
- Backup Output1 RJ45 port used to connect with DS-QAE0A360G1-V6/ENB backup amplifier. Cable (CAT5E-STP) recommended.
- Backup Power Status Input1 RJ45 port used to receive the switching-quantity signals based on backup power status.
- Voice Message1 Type-B port used to connect with PC to place the voice files, only support MP3 format
- Monitor2 lotus connectors used to output all audio analog signal from the host.
- General
- PowerAC 220-240V~, 50/60 Hz ,360 W
- Dimension440x402x130 mm
- 17 kg
- Packing ListExtension Amplifier x1; Instructions x3; Power Line x1; Terminal 7pin x4; Terminal 2pin x3;
- Operating Temperature-5 °C-+45 °C
- Power Consumption1100 W MAX
