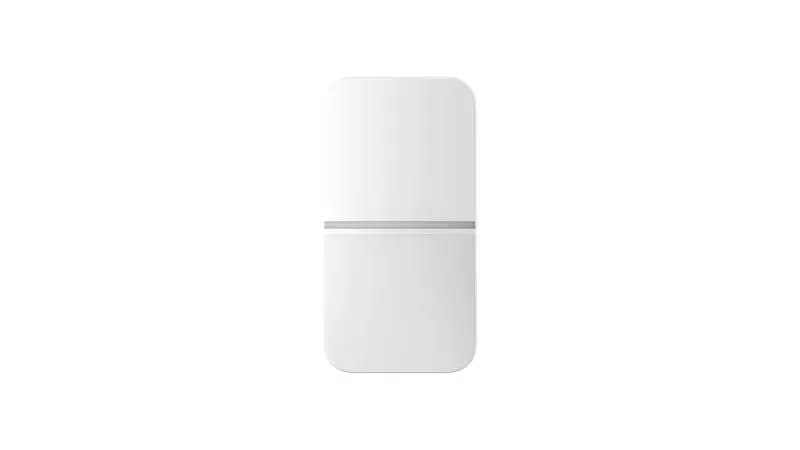

Hikvision DS-PDCL12-EG2 — Wired PIR Ceiling detektor
Hikvision DS-PDCL12-EG2 — Wired PIR Ceiling detektor
- Detection performance
- Detection methodPassive Infrared;Microwave
- Detection range18m
- Detection angle90°
- Detection zones20
- Detectable speed0.2~2.5m/s
- SensitivityHigh;Auto;Low
- White light filter6500 lux
- Microwave frequency24 Ghz (24.15 Ghz ~ 24.25 Ghz)
- Creep zone protectionSupport
- Digital temperature compensationSupport
- Digital processingSupport
- Pet immunity30Kg
- Communication
- Transmission methodWired
- Software features
- Tamper switchNC with cover installed, 100mA, 30 VDC
- Anti-MaskingSupport
- Anti-cloakingSupport
- Anti-crawlingSupport
- Tamper protectionRear
- Hardware features
- Alarm output
Normally close; Normally open;
150mA, 100 VDC, 8 Ohms resistance max
- Fault relay outputNormally close; 150mA, 60 VDC, 20 Ohms resistance max
- Display
- LED indicatorPIR(Green), Microwave(Orange), Alarm(Blue), Fault(Orange), Mask(Green + Orange), Power up(Blue flashing)
- Electrical characteristics
- Storage temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Operation temperature-10 °C to 55 °C (14 °F to 131 °F)
- Operation humidity10% to 90%
- Power supply9 to 16 VDC
- Typical voltage12 VDC
- Power consumption
Maximum current：16mA @12VDC
Quiescent current：11mA @12VDC
- General
- Dimension (W×H×D)58 mm× 112 mm × 41 mm
- Weight120g
- Mounting height2m to 2.7m
- Mounting methodWall;Flush Mount
- Application scenarioIndoor
- BracketOptional wall & ceiling accessory
- Sealed opticsSupport
