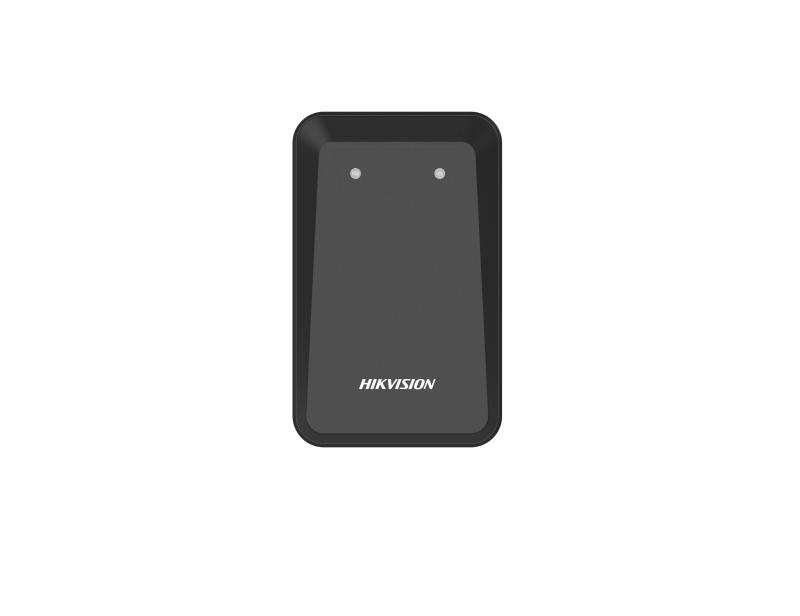

Qiymət sorğusu- Entrance and Exit Radar
- Transmitting Frequency60GHz
- BeamwidthVertical 10°, Horizontal 38°
- Response Time (ms)50ms
- Trigger Distance (m)0.3 to 6 m (adjustable)
- Detection Area (m)Horizontal width: 0 to 2 m (adjustable)
- Detection TargetTrigger Mode ：Vehicle/Person
Anti-fall Mode ：Vehicle/Person - Online DebugSerial port/Bluetooth
- Online UpgradeSerial port/Bluetooth
- Transmitting Power≤ 10mW
- Area Vehicle FollowingDistinguish following distance of vehicle: 0.5 to 2 m (adjustable)
- General
- Working Temperature and Humidity-40℃~+85℃;
- Working Current＜ 0.25A
- Working Voltage 9-32VDC（With power adapter）
- Power Consumption＜ 3W
- Package DimensionsAnti-fall Radar: 148 × 115 × 65 mm (5.83 × 4.53 × 2.56 inch) (L × W × H)
- Dimensions96 × 60 × 29 mm (3.78 × 2.36 × 1.14 inch)
- ProtectionIP67
- Weight (with Package)1.1 kg (2.43 lb.)
