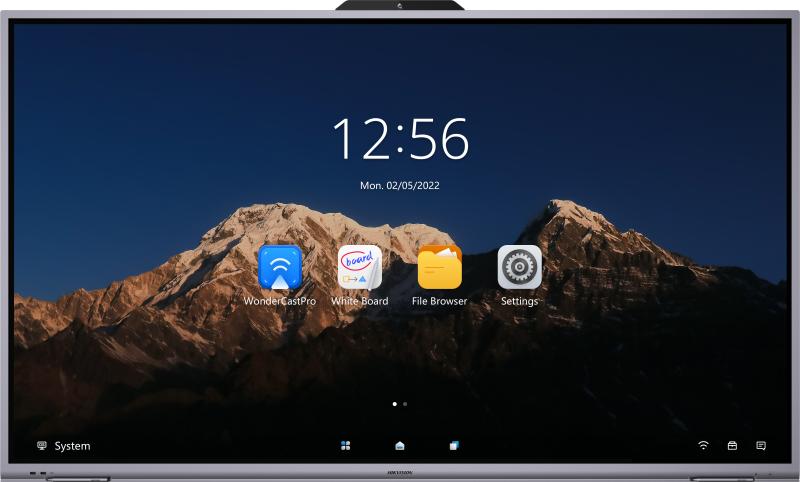

Hikvision DS-D5B75RB/D

Product Model

DS-D5B75RB/D

Screen Size

75 inch

Backlight

DLED

Pixel Pitch

0.143 (H) × 0.430 (V) mm

Resolution

3840 × 2160@60 Hz

Brightness

350 cd/m²（Typ.）

Color Depth

10 bit

Contrast Ratio

5000 : 1 (Typ.)

Response Time

6 ms

Color Gamut

90% NTSC (CIE1931) (Typ.)

Refresh Rate

60 Hz

Viewing Angle

178° (H) / 178° (V)

Surface Haze

25%Haze

Display Area

1650.24mm x 928.26mm

Working Duration

7*16H

Type

Infrared touch screen

Glass

AG smooth glass

Touch Point

Max 45 point multi-touch

Touch Response Time

＜ 10 ms

Touch Precision

± 1 mm (≥ 90% touching area)

Operation System

Android 11

Processor

A72*2 + A53*4, 1.8 GHz

Memory

4 GB

Built-in Storage

64 GB

NIC

Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 × 2 MIMO, supporting both 2.4 GHz and 5GHz bands

Pixel

8 MP

Camera Function

Smart switch between Android system and OPS

Field Angle

120°(diagonal), 110°(horizontal), 66°(vertical)

Distortion

≤6%

Camera Resolution Ratio

Up to 4K

Specification

Omni-directional 6-array layout

Mic Function

Echo reduction and smart noise-cancellation

Voice Distance

8 m

Sampling Rate

32 K

Mic Sampling Rate

16 bit

Loudspeaker

Built-in 2 × 16 W loudspeaker

Bluetooth

Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version

Video & Audio Input

HDMI IN × 2, MAX 4K @30 Hz, LINE IN × 1

Video & audio output

HDMI OUT（HDMI 2.0） × 1, MAX 4K @60 Hz, LINE OUT × 1

Control interface

RS-232 × 1, Touch-USB × 1

Network Interface

RJ45 (1000 Mbps port) × 2

Data Transmission Interface

USB-C × 1, USB-A × 2 on front panel, USB-A × 2 on rear panel

Power Consumption

≤ 370 W (full load)

Standby Consumption

0.5 W

Power

100 to 240 V, AC, 50/60 Hz

Product dimensions

1718 × 1046 × 87.5 mm

Package Dimensions (W × H × D)

1927 × 1212 × 254 mm

Net Weight

52.25 kg

Gross Weight

68.86 kg

Lifespan

50000 hours

Working Temperature

0 ℃ to 40 ℃ (32 ℉ to 104 ℉)

Working Humidity

10% to 90% RH
