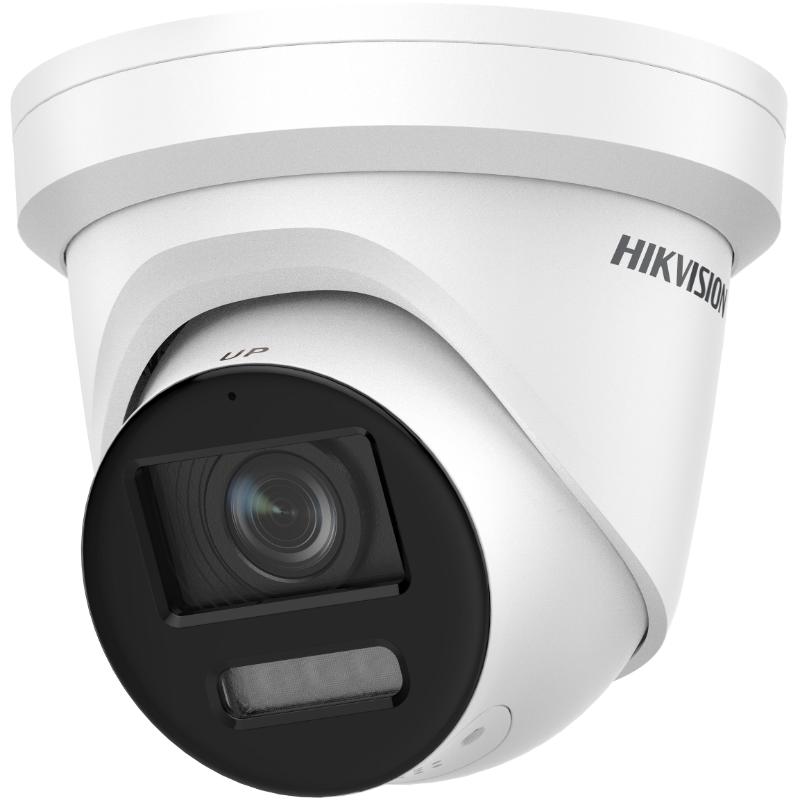

Hikvision DS-2CD2387G2-LSU/SL

Image Sensor

1/1.2″ Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color：0.0005 Lux @ (F1.0, AGC ON)，0 Lux with white light

Shutter Time

1/3 s to 1/100,000 s

Day & Night

24/7 Color imaging

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°;4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°

Lens Mount

M mount

Iris Type

Fixed

Aperture

F1.0

Depth of Field

2.8 mm: 4 m to ∞;4 mm: 6.2 m to ∞

DORI

2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m;4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Supplement Light Type

White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Main Stream

50 Hz:;25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz:;24 fps (3840 × 2160);30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR);Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)

130 dB

SNR

≥ 52 dB

Privacy Mask

8 programmable polygon privacy masks

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

Yes

Built-in Speaker

1.5 W, 10 cm: 95 dB

Audio

1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC, 1 A)

Reset Key

Yes

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection;Scene change detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, trigger record, trigger capture, send email

Face Capture

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle)

Power

12 VDC ± 25%, 0.63 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection;PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A

Material

Cover: metal, main body: metal

Dimension

Ø138.3 mm × 120.1 mm (Ø5.4″ × 4.7″)

Package Dimension

170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)

Weight

Approx. 900 g (2 lb.)

With Package Weight

Approx. 1190 g (2.6 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter

EMC

FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7);KC (KN32: 2015, KN35: 2015)

Safety

UL (UL 62368-1);CB (IEC 62368-1: 2014+A11);CE-LVD (EN 62368-1: 2014/A11: 2017)

Environment

CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)

Protection

IP67: IEC 60529-2013
